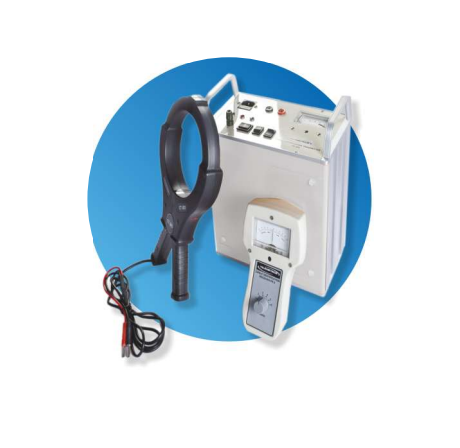

Cable Identification Transmitter PG 60S:
Power Supply: 230V AC ± 10%, 50 Hz, Single phase or from built in-Accumulator with internal charging supply
Impulse Voltage: 65 V
Impulse Current: 100 Amp
Impulse Sequence I: 2.5s
Impulse Sequence II: 2.5 and 1 s alternating
Indication: Analog moving coil meter for output current, Charging Indication, Power on indication, Low battery Indication
Operating Time: 6 Hrs. Continuous
Working Temp.: 0 ℃ to 55 ℃
Storage Temp.: -5 ℃ to 60 ℃
Dimensions: 242mm(L) x 134mm(W) x 245mm(D) mm
Weight: 5.3 kg Approx.
Cable Identification Receiver PR 6:
Sensitivity: 100% at 400Ω loop resistance
Display: Digital graphical display 128 x 64 with back-lit sensing.
Indication : Analog moving coil center zero Meter
Power Supply: 9V battery (Recommended Duracell)
Working Temp.: 0 ℃ to 55 ℃
Storage Temp.: -5 ℃ to 60 ℃
Dimensions: 197(L) x 108(W) x 68(D) mm
Weight: 0.4 kg Approx
Standard Accessories
Mains supply cord
Output connecting cables
Earthing cable
