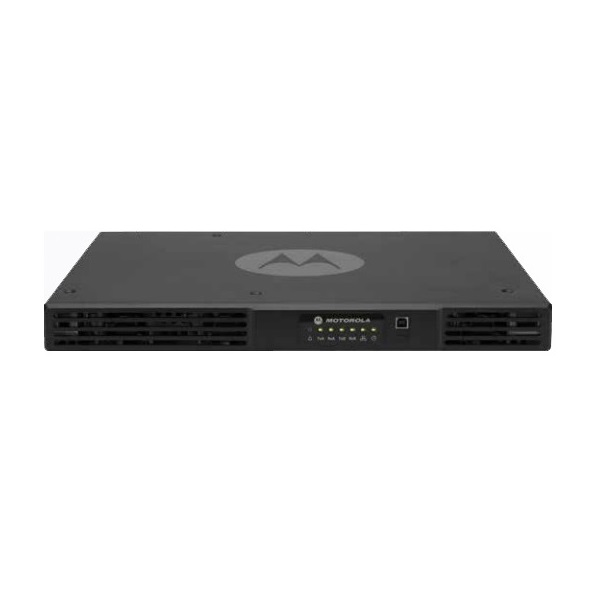

MOTOROLA XiR SLR5300 Repeater (136-174MHz; VHF 50W)

GENERAL SPECIFICATIONS

- Frequency Range: 136-174MHz

- Channel Capacity: 64

- RF Output Power: 1-50W

- Dimensions (H x W x D): 1.75 x 19 x 14.6 in (44 x 483 x 370mm)

- Weight: 19 lbs (8.6 kg)

- Input Voltage (AC): 100-240 Vac, 47-63Hz

+ Current (standby) 110/240V: 0.18/0.25A

+Current (transmitting) 110/240V: 1.5 / 0.9 A

- Input Voltage (DC) 11.0-14.4 Vdc

+Current (standby) 0.7 A

+Current (transmitting) 9.5 A

- Operating Temperature Range: -22 to +140 °F (-30 to +60 °C)

- Humidity: RH of 95%, non-condensing at 50 °C (122 °F)

- Max Duty Cycle: 100%

- Digital Vocoder Type: AMBE+2™

- Battery Charger Capacity: 12V, 3A

- Connectivity: Tx (N female), Rx (BNC female), USB A receptacle, 2x Ethernet

- Supported System Types: Digital Conventional, IP Site Connect, Capacity Plus, Linked Capacity Plus, Capacity Max, Connect Plus Analog Conventional, MPT 1327

RECEIVER

- Frequency Range: 136-174MHz

- Channel Spacing: 12.5 / 25* kHz

TRANSMITTER

- Frequency Range: 136-174MHz

- RF Output Power: 1-50W

Notes:

- Compatible with IPSC infrastructure

- Optional acessories: copyrights for single-point trunking (Capacity Plus), multi-point trunking (Linked Capacity Plus); Controller trunking

- Excluding acessories: Duplexer, Patch cable, antenna, connector, coaxial cable, etc.
