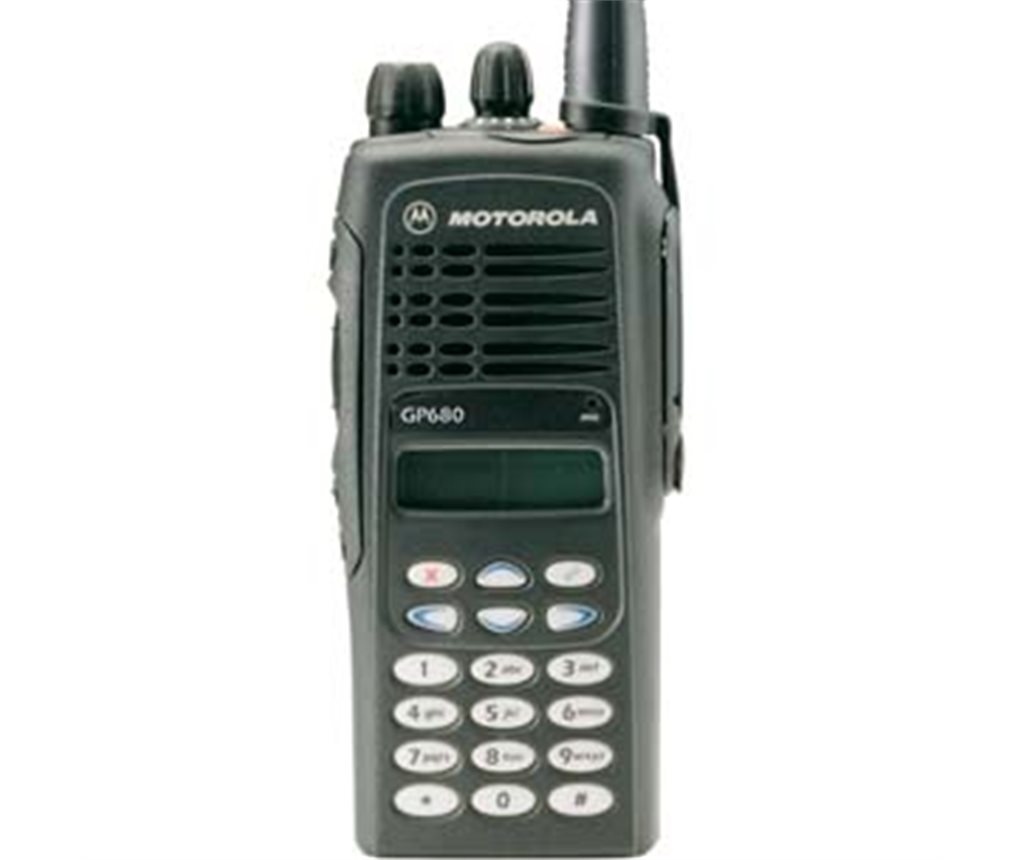

MOTOROLA GP-680 Professional Portable Radio

Channel Capacity: 16 (Conventional Mode)

Power Supply: Rechargeable Battery 7.5V

Dimensions: H × W × D (mm)

With Standard high capacity NiMH battery: 137 × 57.5 × 37.5

With Ultra high capacity NiMH battery: 137 × 57.5 × 40.0

With NiCD battery: 137 × 57.5 × 40.0

With Li-Ion battery: 137 × 57.5 × 33.0

Weight (g):

With Standard high capacity NiMH battery: 428

With Ultra high capacity NiMH battery: 508

With NiCD battery: 458

With Li-Ion battery: 358

Average battery life @5/5/90 Cycle:

Low Power / High Power

With Standard high capacity NiMH battery: 11 hours / 8 hours

With Ultra high capacity NiMH battery: 14 hours / 11 hours

With NiCD battery: 12 hours / 9 hours

With Li-Ion battery: 11 hours / 8 hours

Sealing:

Withstands rain testing per MIL STD 810 C/D/E and IP54

Shock and Vibration:

Protection provided via impact resistant housing exceeding MIL STD 810-C/D/E and TIA/EIA 603

Dust and Humidity:

Protection provided via environment resistant housing exceeding MIL STD 810 C/D/E and TIA/EIA 603

Operating Temperature: -20°C to +55°C

Transmitter

Frequencies – Full Bandsplit:

VHF: 136–174 MHz

UHF: 300–350 MHz

UHF1: 403–470 MHz

Channel Spacing: 12.5/20/25 kHz

Frequency Stability (-25°C to +55°C, +25°C Ref.): ±2.5 ppm

Power:

136–174 MHz: 1–5 W

300–350 MHz: 1–4 W

403–470 MHz: 1–4 W

Modulation Limiting:

±2.5 @ 12.5 kHz

±4.0 @ 20 kHz

±5.0 @ 25 kHz

FM Hum & Noise: -40 dB typical

Conducted/Radiated Emission:

-36 dBm <1 GHz

-30 dBm >1 GHz

Adjacent Channel Power:

-60 dB @ 12.5 kHz

-70 dB @ 20/25 kHz

Audio Response (300–3000 Hz): +1 to -3 dB

Audio Distortion: 3%

Receiver

Frequencies – Full Bandsplit:

VHF: 136–174 MHz

UHF: 300–350 MHz

UHF1: 403–470 MHz

UHF2: 450–527 MHz

Channel Spacing: 12.5/20/25 kHz

Frequency Stability (-25°C to +55°C, +25°C Ref.): ±2.5 ppm

Sensitivity (12 dB SINAD) EIA: 0.25 µV typical

Sensitivity (20 dB SINAD) EN: 0.50 µV typical

Intermodulation EIA: 70 dB

Adjacent Channel Selectivity:

60 dB @ 12.5 kHz

70 dB @ 20/25 kHz

Spurious Rejection: 70 dB

Rated Audio: 0.5 W

Audio Distortion @ Rated Audio: 3% typical

Hum & Noise:

-40 dB @ 12.5 kHz

-50 dB @ 20/25 kHz

Audio Response (300–3000 Hz): +1 to -3 dB

Conducted Spurious Emission:

-57 dBm <1 GHz

-47 dBm <1 GHz

EN 300 086
