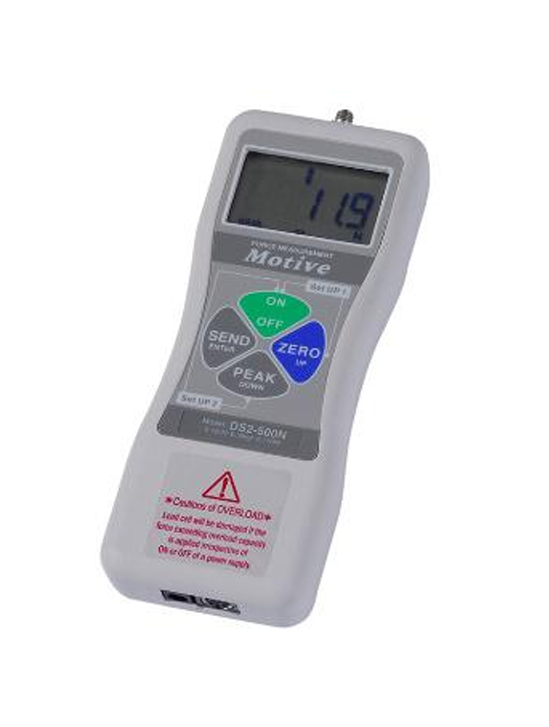

Motive DS2-500N Digital Force Gauge (500N)

Capacity: 500 N (50 Kgf)

Indication: 500.00 N (50.00 Kgf)

Resolution: 0.1 N (0.01 Kgf)

Accuracy: ±0.2% F.S. ±1 digit

Sampling rate: 1000 times/sec

Measuring unit: N, Kgf (gf) or lbf (ozf), selectable

Display: 4 digits LCD

Measurable value: Peak or current value

Overload capacity: Approx. 200% F.S. (warning LED blinks at 110%)

A/D converter: 16-bit type

Processor: 8-bit CPU

Operating temperature: 0 to +40 °C

Power: Internal four AA Ni-MH batteries or external AC adapter

Output: RS-232C, analog voltage ±1 V F.S.

Weight: Approx. 420 g

Included: Instruction manual, inspection certificate, six attachments, AC adapter and carrying case
