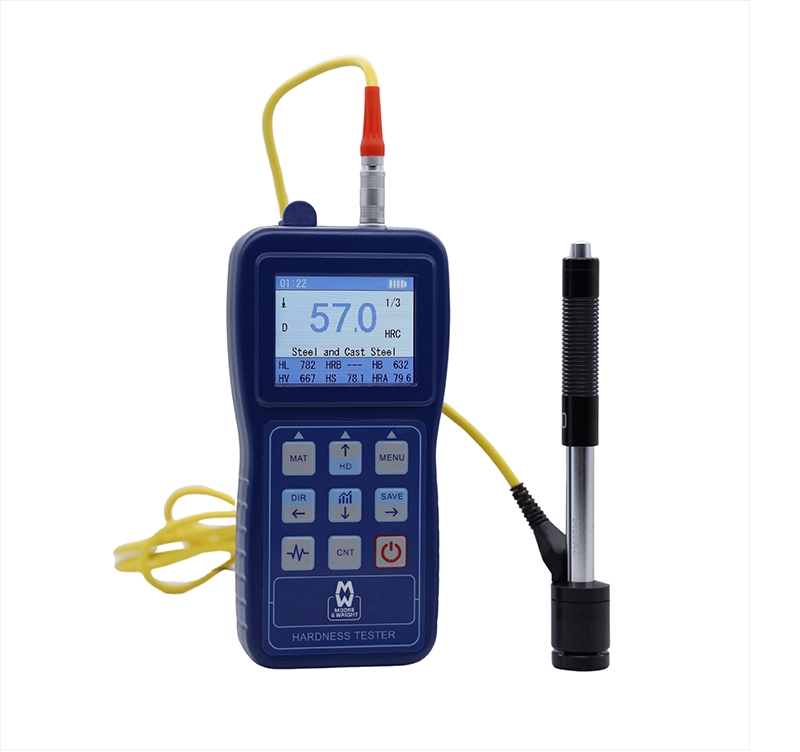

MOORE & WRIGHT MWT-3100 Leeb Hardness Tester (170~960HLD)

Measurement Range: 170~960HLD

Error:

+ The indication error is less than ±6HLD (when HLD=760±30);

+ The repeatability error is less than 6 Error HLD (when HLD=760±30

Measurement Direction: Support 360 degrees (vertical down, oblique down, horizontal, oblique up, vertical up)

Screen Display: Colour screen LCD display with adjustable brightness

Test Materials: Steel and cast steel, alloy tool steel, grey cast iron, ductile iron, cast aluminium alloy, copper zinc alloy (brass), copper tin alloy (bronze), pure copper

Power Supply: 3V (2 AA size alkaline batteries in series)

Data Storage: 100 groups

Size (mm): 152 x 77 x 36

Weight (g): 330 (Hardness gauge) ; 3880 (as supplied with sample inc case)

Datasheet
