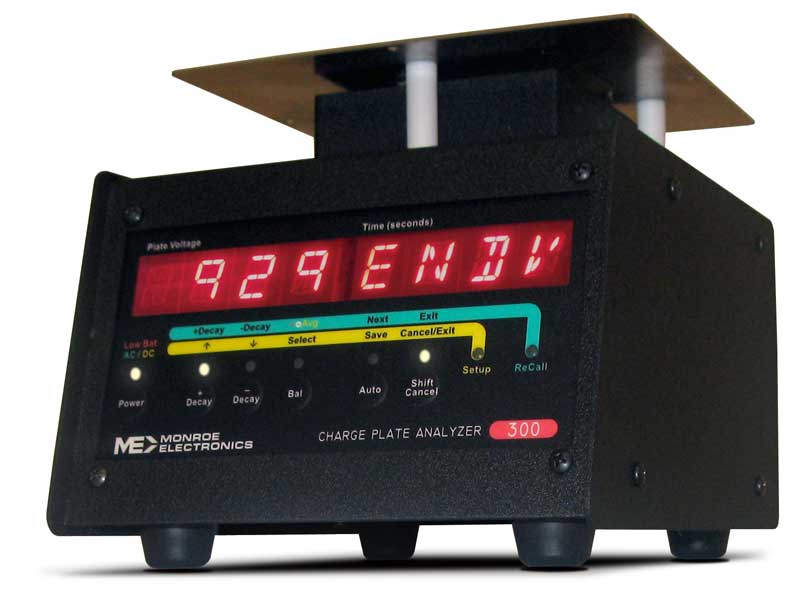

Monroe 300 Charged Plate Analyzer with Carry Case

Charger: ±1100 volts, selectable polarity

Fieldmeter:

Range:

0 to ±1300 volts on display

0 to ±1800 volts analog output

1 volt resolution

Accuracy: ±2% of reading ±2V + zero offset

Bandwidth: 6Hz

Analog output:1/1000 of plate voltage, ±3% typical

Trip Points:

Start Voltage: 1000 volts fixed

Stop Voltage: 10 to 990 volts in 1V steps

Charge Plate:

Size: 6”x6” (15cm x 15cm)

Capacitance: 20pf, ±10%

Plate self discharge: Less than 100 volts within 5 minutes (< 60% R.H.)

Timer:

Range: 0.1 sec to 999.9 sec

Resolution: 0.1 sec

Accuracy: 0.1 sec

Power

Requirements: 100 to 220 VAC nominal line voltage; less than 5 Watts.

Battery Life: >8 hours

Dimensions: Approx 6.375”W x 8.5”D x 6H”

Weight: Approx 5.2 lbs.
