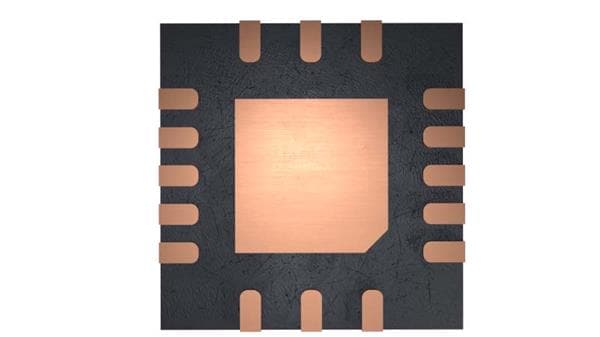

Monolithic Power Systems (MPS) MPQ2022AGRE-0000-AEC1-Z Low Dropout Regulator 300mA Dual Phantom Antenna LDOwith I2C and ADC for Digital Diagnosis40V, AEC-Q100 Qualified

Polarity: Positive

Output Type: Adjustable

Mounting Style: SMD/SMT

Output Current: 300 mA

Output Voltage: 1 V to 13.6 V

Dropout Voltage: 250 mV

Line Regulation: 1 mV

Load Regulation: 30 mV

Number of Outputs: 1 Output

Quiescent Current: 35 uA

Input Voltage - Max: 45 V

Input Voltage - Min: 4.5 V

Output Voltage Range: 1 V to 13.6 V

Dropout Voltage - Max: 700 mV

Pd - Power Dissipation: 4 W

Operating Supply Current: 35 uA

Operating Temperature Range: - 40 C to + 150 C

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 60 dB
