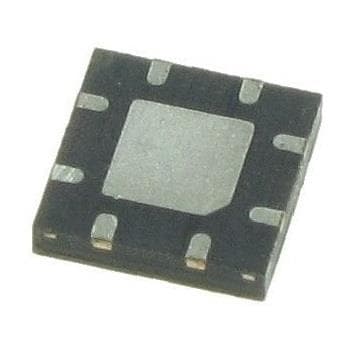

Monolithic Power Systems (MPS) MPQ2013AGQ-AEC1-P Linear LDO Regulator Automotive Grade,40V,150mA,Low Quiescent Current Linear Regulator

Polarity: Positive

Output Type: Fixed

Unit Weight: 38.100 mg

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 150 mA

Dropout Voltage: 620 mV

Line Regulation: 0.01 %/V

Load Regulation: 0.005 %/mA

Number of Outputs: 1 Output

Quiescent Current: 3.3 uA

Input Voltage - Max: 40 V

Input Voltage - Min: 2.5 V

Output Voltage Range: 1.215 V to 15 V

Dropout Voltage - Max: 900 mV

Pd - Power Dissipation: 2.08 W

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 55 dB
