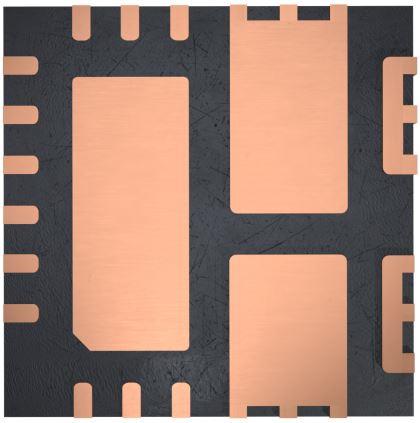

Monolithic Power Systems (MPS) MP1930GQN-P Half-Bridge Max 75V, 10A, Integrated Half-Bridge Power Stage in a QFN-26 (7mmx7mm) Package

Shutdown: Shutdown

Fall Time: 12 ns

Rise Time: 19 ns

Logic Type: TTL

Mounting Style: SMD/SMT

Output Current: 10 A

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Moisture Sensitive: Yes

Input Voltage - Max: 75 V

Input Voltage - Min: 18 V

Supply Voltage - Max: 18 V

Supply Voltage - Min: 9 V

Pd - Power Dissipation: 5 W

Operating Supply Current: 800 uA

Maximum Turn-On Delay Time: 20 ns

Maximum Turn-Off Delay Time: 20 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 11 mOhms
