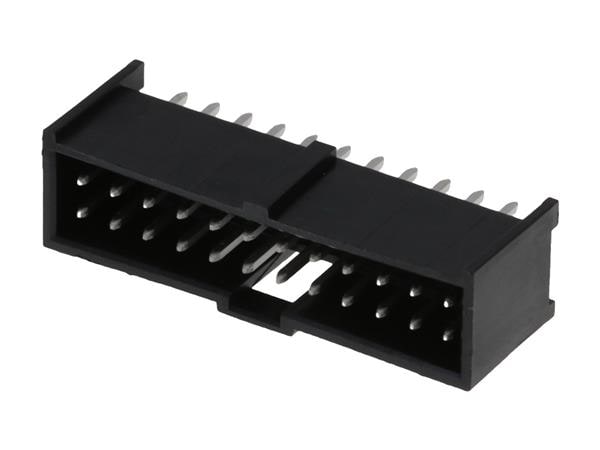

Pitch: 2.54 mm (0.1 in)
Application: Wire-to-Board, Signal
Row Spacing: 2.54 mm (0.1 in)
Unit Weight: 2.694 g
Housing Color: Black
Contact Gender: Pin (Male)
Current Rating: 3 A
Mounting Angle: Straight
Mounting Style: Through Hole
Number of Rows: 2 Row
Voltage Rating: 350 VAC/DC
Contact Plating: Tin
Contact Material: Tin
Housing Material: Polyester
Termination Style: Solder Pin
Mating Post Length: 6.75 mm (0.266 in)
Flammability Rating: UL 94 V-0
Number of Positions: 24 Position
Termination Post Length: 2.9 mm (0.114 in)
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
