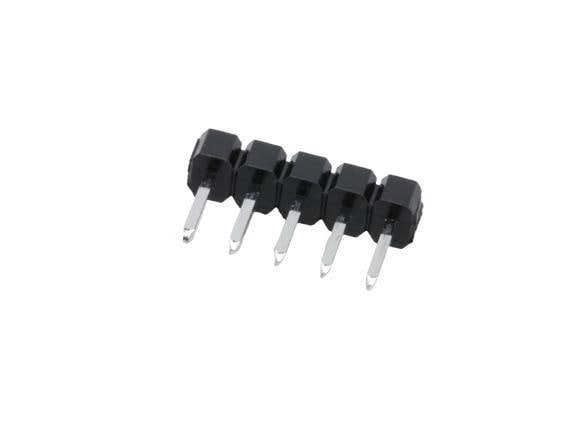

Pitch: 2.54 mm (0.1 in)
Application: Board-to-Board, Wire-to-Board, Signal
Unit Weight: 369 mg
Contact Gender: Pin (Male)
Current Rating: 3 A
Mounting Angle: Right Angle
Mounting Style: Through Hole
Number of Rows: 1 Row
Voltage Rating: 250 V
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Thermoplastic
Termination Style: Solder Pin
Mating Post Length: 5.84 mm (0.23 in)
Flammability Rating: UL 94 V-0
Number of Positions: 5 Position
Termination Post Length: 2.29 mm (0.09 in)
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 55 C
