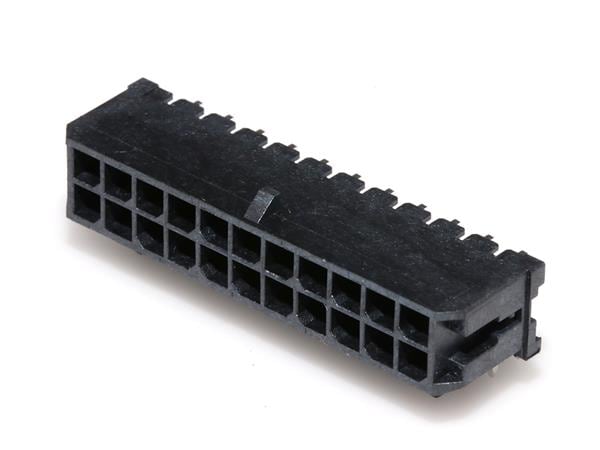

Pitch: 3 mm (0.118 in)
Application: Wire-to-Board, Power
Row Spacing: 3 mm (0.118 in)
Unit Weight: 3.354 g
Housing Color: Black
Contact Gender: Pin (Male)
Current Rating: 8.5 A
Mounting Angle: Right Angle
Mounting Style: Through Hole
Number of Rows: 2 Row
Voltage Rating: 600 V
Contact Plating: Gold
Contact Material: Tin
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder Pin
Flammability Rating: UL 94 V-0
Number of Positions: 22 Position
Termination Post Length: 3.18 mm (0.125 in)
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
