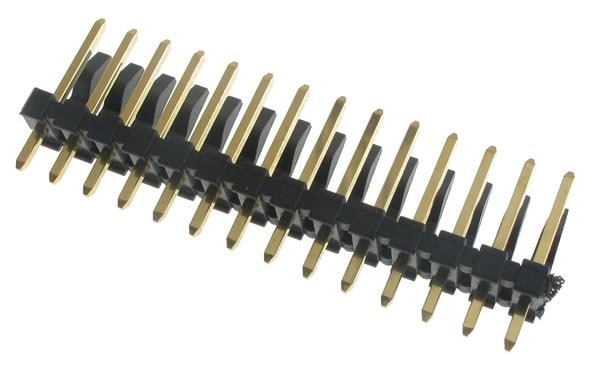

Pitch: 3.96 mm (0.156 in)
Application: Wire-to-Board, Power
Unit Weight: 5.847 g
Contact Gender: Pin (Male)
Mounting Angle: Straight
Mounting Style: Through Hole
Number of Rows: 1 Row
Contact Plating: Gold
Housing Material: Polyester
Termination Style: Solder Pin
Mating Post Length: 11.43 mm (0.45 in)
Flammability Rating: UL 94 V-0
Number of Positions: 14 Position
Termination Post Length: 4.37 mm (0.172 in)
Maximum Operating Temperature: + 80 C
Minimum Operating Temperature: - 40 C
