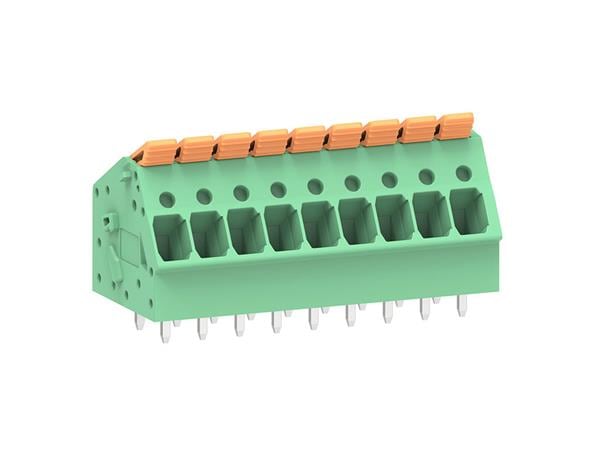

Color: Green
Pitch: 5 mm
Current Rating: 20 A
Mounting Angle: Vertical
Mounting Style: PCB Mount
Voltage Rating: 300 V
Wire Gauge Max: 12 AWG
Wire Gauge Min: 24 AWG
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Polyamide (PA)
Connection Method: PCB Mount
Termination Style: Through Hole
Flammability Rating: UL 94 V-0
Number of Positions: 9 Position
