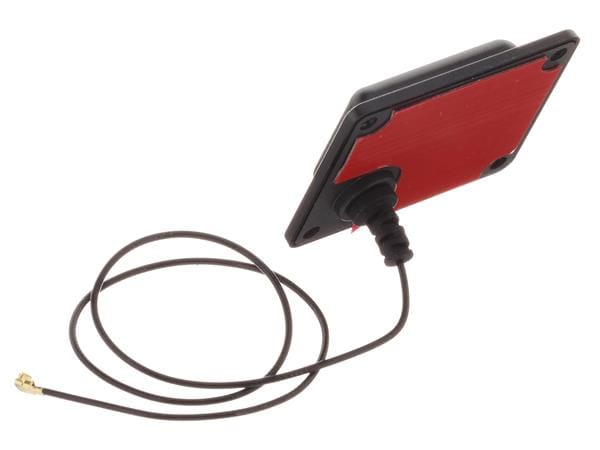

Molex 215868-0001 Passive Antenna OnMetal WiFi Antenna 2.4GHz/5GHz 300mm

Gain: 2 dBi, 5.5 dBi

Style: Square

Width: 37 mm

Length: 44 mm

Cable Type: 300 mm Coax

Cable Length: 300 mm

Polarization: Linear

Mounting Style: Screw Mount

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.5 GHz

Mechanical Style: Module

Maximum Frequency: 2.5 GHz, 5.85 GHz

Minimum Frequency: 2.4 GHz, 5.15 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT

Antenna Connector Type: U.FL / IPEX MHF

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: DSRC

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
