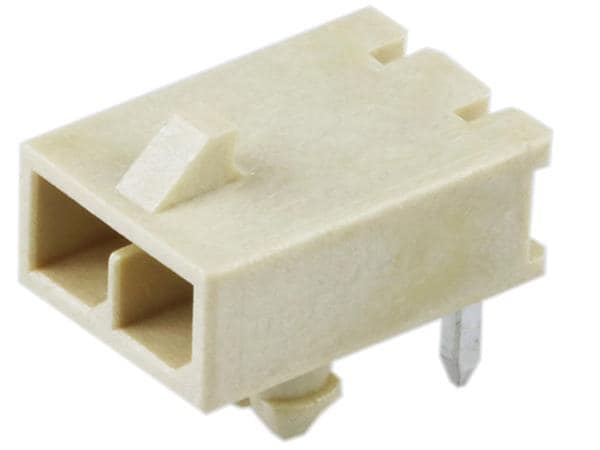

Pitch: 3 mm (0.118 in)
Application: Wire-to-Board, Power
Housing Color: Natural
Contact Gender: Socket (Female)
Current Rating: 12.5 A
Housing Gender: Receptacle
Mounting Angle: Right Angle
Mounting Style: PCB Mount
Number of Rows: 1 Row
Voltage Rating: 600 VAC/DC
Contact Plating: Gold
Contact Material: Copper
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder Pin
Flammability Rating: UL 94 V-0
Number of Positions: 3 Position
Insulation Resistance: 1 GOhms
Termination Post Length: 3.17 mm (0.125 in)
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
