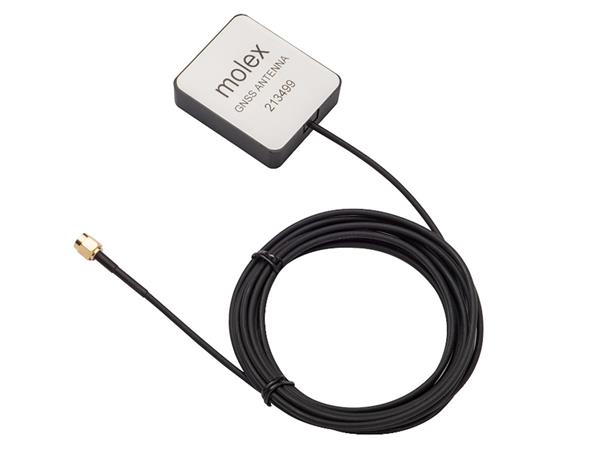

Molex 213499-3000 Active Antenna GNSS EXTERNAL ANTENNA

Gain: - 0.4 dBi, - 1.4 dBi, - 1.7 dBi

VSWR: 2

Style: Panel

Width: 47 mm

Height: 16.7 mm

Length: 55 mm

Impedance: 50 Ohms

Cable Type: 3 M RG174

Cable Length: 3 m

For Use With: GNSS Module, Smart Transportation

Polarization: RHCP

Power Rating: 2 W

REACH - SVHC: Details

Mounting Style: Magnetic Mount

Number of Bands: 3 Band

Center Frequency: 1.561098 GHz, 1.57542 GHz, 1.602 GHz

Mechanical Style: Module

Maximum Frequency: 1.606 GHz

Minimum Frequency: 1.55905 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
