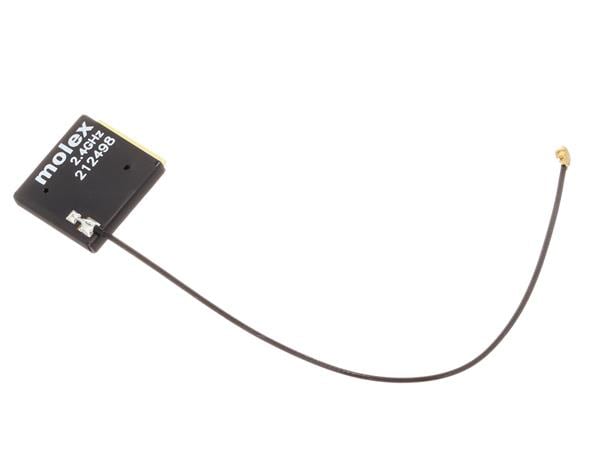

Molex 212498-0150 Passive Antenna 2.4GHz on full metal cabled ANT 150mm

Gain: 3.6 dBi

Style: I-Bar Flex

Width: 20.2 mm

Height: 3.5 mm

Length: 20.2 mm

Impedance: 50 Ohms

Cable Type: 150 mm Coax

Cable Length: 150 mm

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Electrical Type: Patch

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.5 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 5.85 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: IPEX MHF

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
