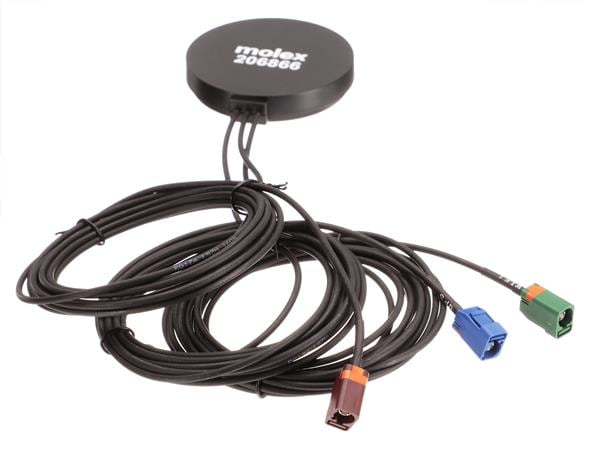

Molex 206866-3000 MIMO 3 in 1 4G Wi-Fi GPS Ext Anntena 3m Cbls

Gain: - 0.5 dBi, - 2.7 dBi, 0 dBi, 3 dBi

Style: Puck

Length: 77 mm

Diameter: 15 mm

Impedance: 50 Ohms

Cable Type: 3 M Coax x 3

Unit Weight: 180.442 g

Cable Length: 3 m

Polarization: Linear, RHCP

REACH - SVHC: Details

Mounting Style: Adhesive Mount

Number of Bands: 4 Band

Center Frequency: 824 MHz, 850 MHz, 868 MHz, 892 MHz, 902 MHz, 915 MHz, 916 MHz, 928 MHz, 933 MHz, 960 MHz, 1427 MHz, 1528 MHz, 1561 MHz, 1574.42 MHz, 1575 MHz, 1602 MHz, 1710 MHz, 1850 MHz, 1990 MHz, 2170 MHz, 2300 MHz, 2400 MHz, 2450 MHz, 2500 MHz

Mechanical Style: Module

Maximum Frequency: 2.69 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: FAKRA

Protocol - GPS, GLONASS: GLONASS, GNSS, GPS

Protocol - WiFi - 802.11: 802.11, LoRaWAN, SigFox, LPWAN, WiFi, WLAN, WiMAX

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
