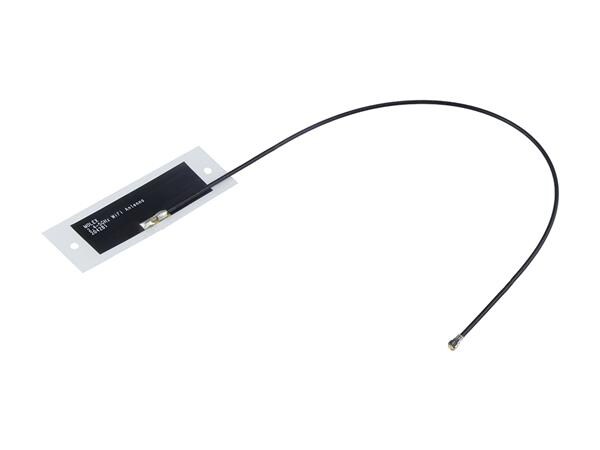

Molex 204281-1200 Flexible Antenna 2.4-5GHz Ant EdgeFed MHF4 200MM Cble Lgth

Gain: 1.6 dBi, 2.8 dBi

Style: I-Pad Flex

Width: 11 mm

Length: 35 mm

Impedance: 50 Ohms

Cable Type: 200 mm

Technology: WiFi

Application: WiFi

Unit Weight: 1 g

Cable Length: 200 m

REACH - SVHC: Details

Mounting Style: Adhesive Mount

Number of Bands: 2 Band

Mechanical Style: PCB Trace

Maximum Frequency: 5.85 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT

Antenna Connector Type: IPEX MHF4

Protocol - WiFi - 802.11: WiFi, WLAN

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
