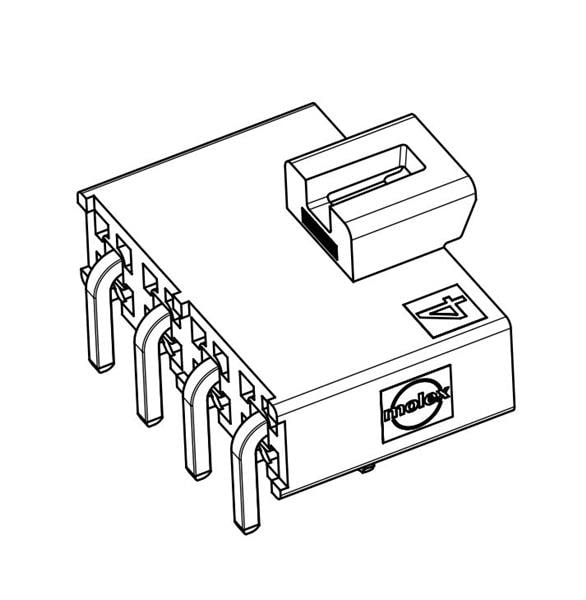

Pitch: 5.7 mm (0.224 in)
Application: Wire-to-Board, Power
Unit Weight: 3.550 g
Housing Color: Black
Contact Gender: Pin (Male)
Current Rating: 23.5 A
Mounting Angle: Right Angle
Mounting Style: Through Hole
Number of Rows: 1 Row
Voltage Rating: 600 VAC/DC
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder Pin
Flammability Rating: UL 94 V-0
Number of Positions: 5 Position
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
