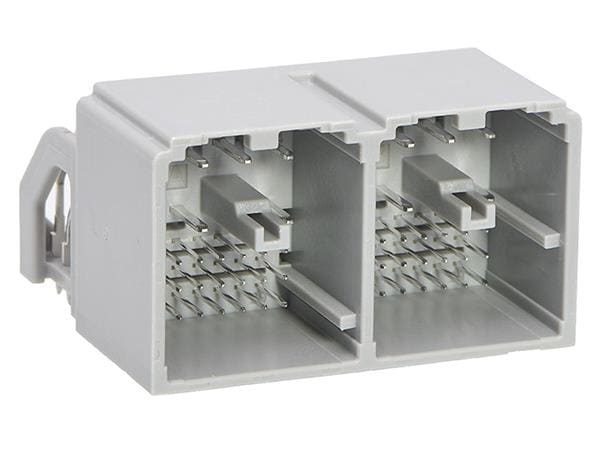

Molex 160013-0641 Shrouded AK50 HYB HDR 56Ckt Key4&1/56

Color: Gray

Pitch: 2 mm, 4 mm

Gender: Pin (Male)

Application: Power, Signal, Wire to Board

Unit Weight: 12.827 g

Contact Type: Male Blade

Contact Gender: Pin (Male)

Current Rating: 4 A, 12 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Number of Rows: 5 Row

Voltage Rating: 500 VDC

Contact Plating: Tin

Contact Material: Tin

Termination Style: Solder Pin

Flammability Rating: UL 94 HB

Number of Positions: 56 Position

Description/Function: stAK50h 2 Bay Infotainment Hybrid Header

Insulation Resistance: 100 MOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
