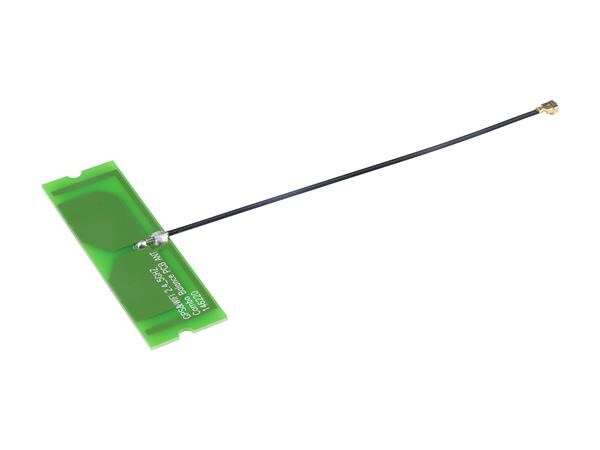

Molex 146220-0050 Passive Antenna GPS & WiFi PCB Ant 16.6mmW 50mm LGTH

Gain: 2.6 dBi, 3.1 dBi, 3.8 dBi, 4.1 dBi

Style: T-Bar

Width: 16.6 mm

Height: 0.81 mm

Length: 53.5 mm

Impedance: 50 Ohms

Cable Type: 50 mm Coax

Technology: GPS, WiFi

Unit Weight: 1.644 g

Cable Length: 50 mm

For Use With: WiFi Devices, GPS, Cameras, Car Audio

Polarization: Linear

Power Rating: 2 W

Mounting Style: Screw Mount

Number of Bands: 4 Band

Center Frequency: 1575.42 MHz, 1602 MHz, 2483.5 MHz, 2400 MHz, 5850 MHz, 5150 MHz, 4500 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 6 GHz

Minimum Frequency: 1.57542 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, U-NII

Antenna Connector Type: IPEX MHF

Protocol - GPS, GLONASS: GLONASS, GPS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
