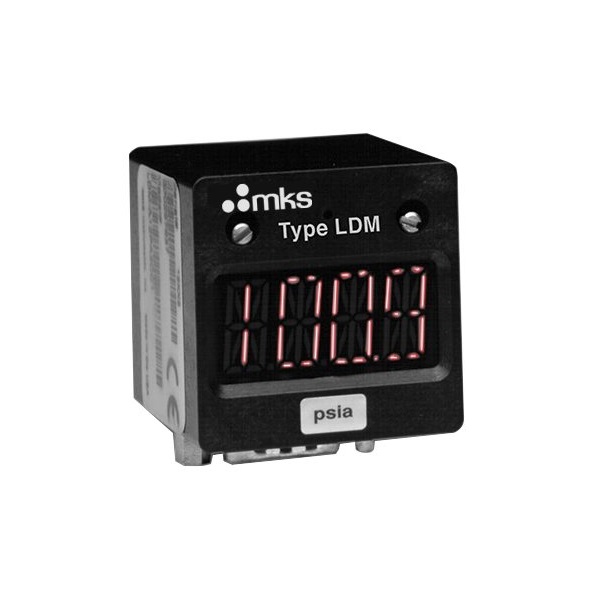

MKS LDM Local Pressure Display Modules (1 channel)

Display:

- LDM-A: 3.5 place red LED, 7-segment, 0.37 in. tall

-LDM-D: 4 place red LED, 16-segment, 0.5 in. tall.

Display Units:

-LDM-A: psi, in Hg, mm Hg (Torr), bar, Pa, or in H2O

-LDM-D: PSIA with front-panel switch for kPa, bar, or mmHg/Torr

Number of Channels: 1

Input Signal:

-LDM-A: 0-5 VDC, 0-10 VDC, 4-20 mA

-LDM-D: 0-10 VDC

Output Signal:

-LDM-A: 0-5 VDC, 0-10 VDC, 4-20 mA

-LDM-D: 0-10 VDC

Operating Temperature: 0° to 50°C

Compliance: EMC Directive 2014/30/EU

For specific range please check the attachment below!
