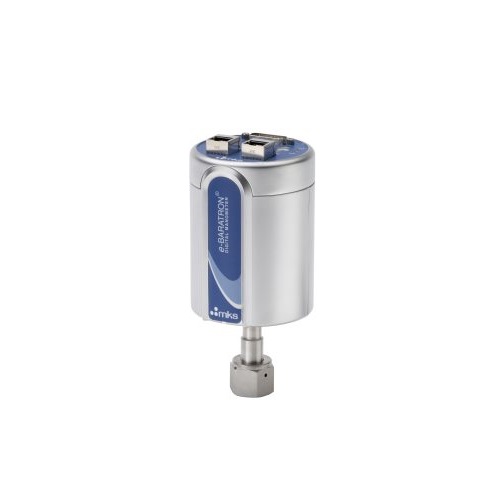

MKS DA02B Absolute Baratron® Capacitance Manometer (0.1Torr; 100°C; EtherCAT)
Manufacturer: MKS Model: DA02B P/N: DA02B.1TBAS21CV0 - Contact
Measurement Type: Absolute
Sensor Temperature: 100°C
Full Scale Range: 0.1 Torr
Accuracy: 0.5% of Reading
Fitting Type: 0.5 in. OD tube
Communication Protocol: EtherCAT
Analog Output: 0-10 VDC
Analog Connector: 15-pin D-sub
Digital Connector: 2 RJ45 EtherCAT jacks
Calibration: Vertical
Zero Temperature Coefficient: 0.010% of Full Scale/°C
Span Temperature Coefficient: 0.02% of Reading/°C
Operating Temperature Range: 15-50°C
Volume: 6.3 cc
Warm-up Time: 4 hours
Overpressure Limit: 45 psia (310 kPa) or 120% of Full Scale, whichever is greater
Exposed Materials: Inconel® and Incoloy® nickel alloys
Compliance: CE
For specific range please check the attachment below!
