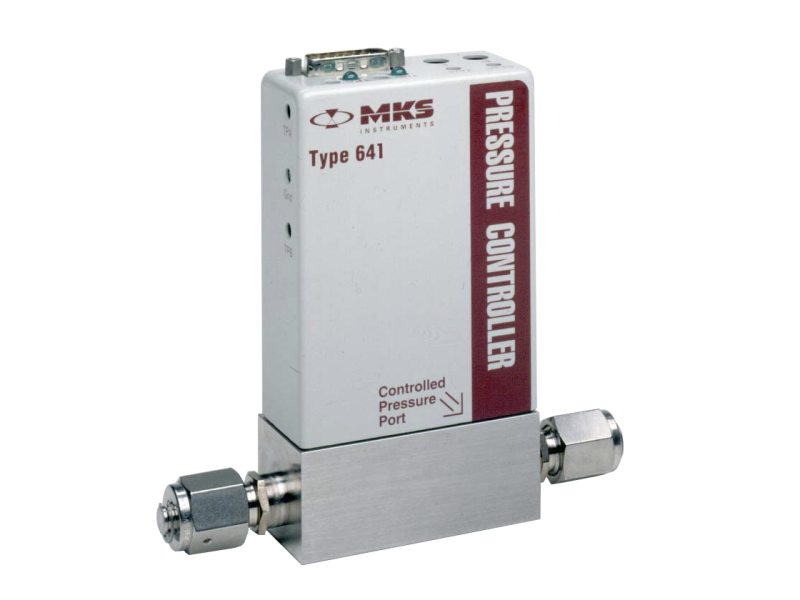

MKS 641B Integrated Gauge Pressure Controller (10 Torr; 10.000 sccm)

Physical:

- Type: 641B Gage Pressure Controller

-Pressure Range: 10 Torr

- Pressure Resolution: <100 msec

-Transducer Over Pressure Limit: 45 psia or 2x Full Scale, whichever is greater

- Flow Rate: 10,000 sccm

Performance:

- Pressure Control:

+ Range: >2 to 100% of Full Scale

+ Accuracy: ±0.2% of Full Scale

+Time Response: <1.0 sec (excluding system time constant)

Electrical:

-Power Required: ±15 VDC ±5%, 200 mA maximum

-Input-Output Signals: 0-5 VDC standard; 0-10 VDC optional

-Connector: 15-pin male type “D”

-Cable Length: 100 ft. (30 m) max.

- Trip Points: Two open-collector transistors

Rated: 250 mA @ 30 VDC

Adjustable: 1 to 100% of Full Scale

Hysteresis: 3% of Full Scale

Indicators: Green LED on when actuated

- Compliance: CE

Mechanical:

- Fitting Type: 0.25 in. tube

- Valve Seat: Viton

- Dimensions: 1.5 x 4.88 x 5.5 in. (38.1 x 124 x 140 mm)

- Weight: 2.54 lbs. (1.15 kg)

Environmental

-Operating Temperature: 0° to 50°C (32° to 122°F)

-Storage Temperature: -20° to 80°C (-4° to 176°F)
