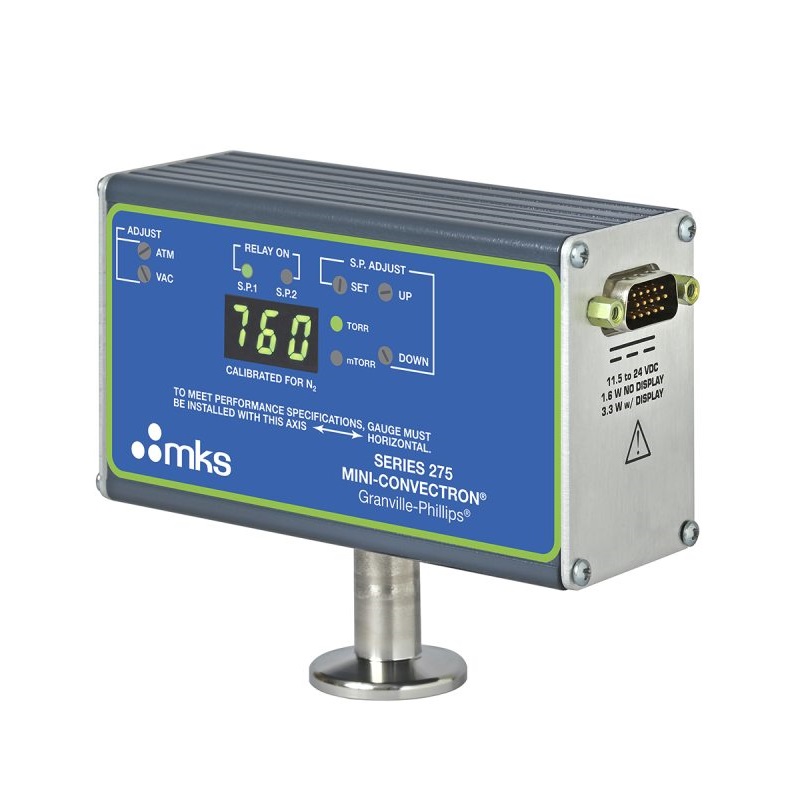

MKS 275 Mini-Convectron® Vacuum Pressure Transducers (1x10^-4-1000 Torr; NW16 ISO-KF)

Absolute Measurement Range: 1.0 x 10-4 to 1000 Torr

Digital Communication: No

Type: Vacuum Module

Display: 3-digit green LED

Interface: analog

Fitting Type: NW16 ISO-KF

Installation Orientation: Horizontal preferred

Operating Temperature: 0 - 40°C ambient, non-condensing

Maximum Bakeout Temperature: 150°C with electronics removed

Storage Temperature: -40 - 70°C

Analog Output: 0.375-5.659 VDC (0-1000 Torr Non-linear)

Power Requirements: 11.5 - 26.5 VDC, 0.1 Amps at 11.5 VDC, 1.6 Watts maximum, 1.8 maximum (with display)

Internal Volume: 40 cm3 (2.5 in3)

Exposed Materials: 304 stainless steel, borosilicate glass, Kovar, alumina, NiFe alloy, polyimide

Electronic Casing and Flange: Aluminum extrusion

Compliance: CE

Filament: Gold-plated Tungsten

Set Point Contact Rating: 1 Amps at 30 VDC resistive, AC non-inductive

Connectors: 9-pin subminiature-D male

Units: Torr
