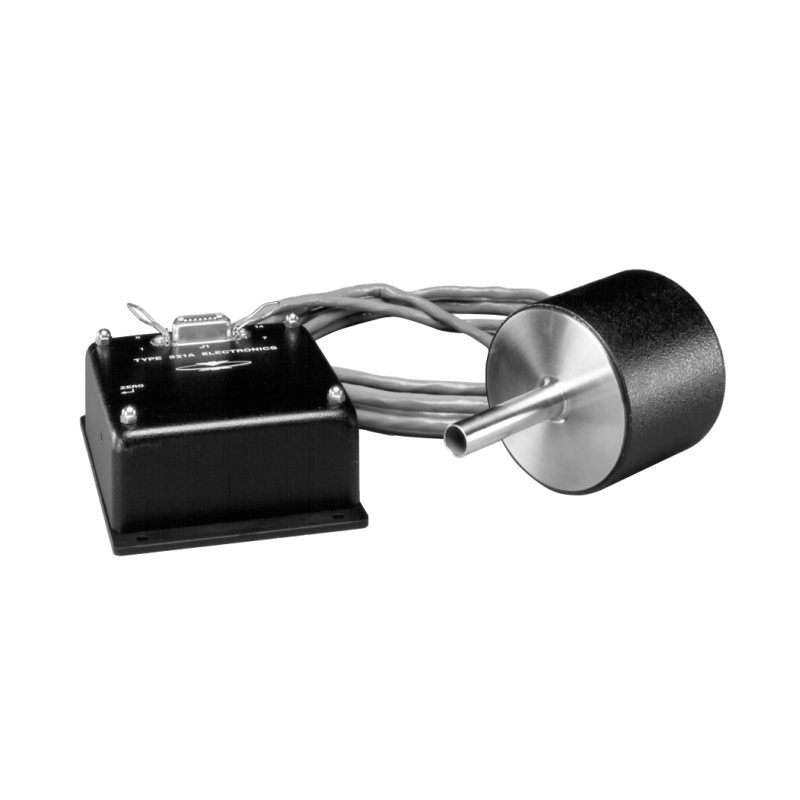

MKS 221B Baratron® Bakeable Differential Pressure Transducers (10 Torr; 0.5 in. Tube)

Full Scale Range: 10 Torr

Fitting Type: 0.5 in. OD tube

Accuracy: 0.5% of Reading (± temperature coefficients)

Resolution: 0.01% of Full Scale

Analog Output: 0 - 10 VDC

Electrical Connector: AMP 14-pin ribbon

Zero Temperature Coefficient: 0.02% of Full Scale/°C

Span Temperature Coefficient: 0.04% of Reading/°C

Operating Temperature Range: Sensor: 0 - 150°C (bakeable to 200°C with cable removed), Preamp: 0 - 50°C

Exposed Materials: Px side: Inconel

Pr side: Inconel, Ceramic, Palladium, Stainless Steel, Glass

Volume: Px side: 7.9 cc

Pr side: 19.0 cc

Overpressure Limit: 140 kPa

Power Requirements: ±15 VDC

For specific range please check the attachment below!
