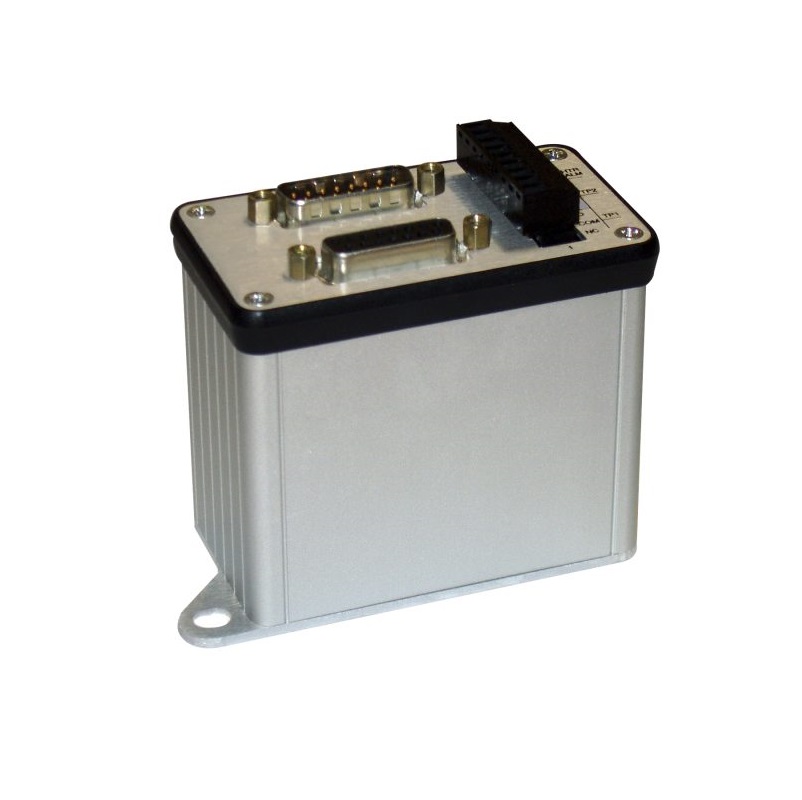

MKS 1017474 Output Module for Baratron® Capacitance Manometers (1 channel)

Channels: 1

Output Power: 24 Volts @ 1 Amp

Output Signal: 0 - 10 VDC into 10 kOhm load, and 4-20 mA. Both outputs linear with pressure.

Interface: RS485/RS232

Connectors: System connector: 15-pin male D-subminiature

Trip relays: 9 - post terminal strip

Baratron: 15-pin female D-subminiature receptacle

Memory: Non - volatile memory

Resolution: 20 ft./2 ft.

Dimensions: 4.07 x 1.69 x 3.15 in. (103.4 x 42.9 x 80.0 mm) (width x depth x height)

For specific range please check the attachment below!
