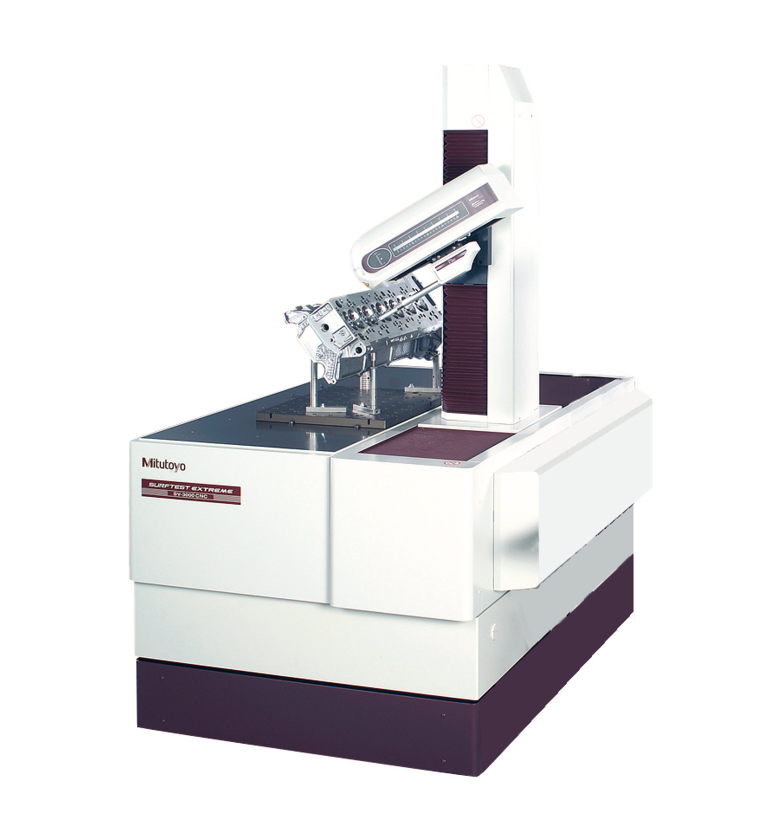

MITUTOYO SV-M3000CNC CNC Surface Roughness Tester (X=200mm; Y=800mm; Z2=500mm; α)

Traverse:

X = 200 mm

Y = 800 mm

Z2 = 500 mm

Detector hold type (Essential option): Standard; Long type; Rotary type

Measuring speed: 0.02 - 2 mm/s

Drive speed: CNC mode: max. 200 mm/s; Joystick mode: 0 - 50 mm/s

Traverse straightness:

X = 0.5 µm / 200 mm (standard)

X = 0.7 µm / 200 mm

(long-type detector)

X = 0.5 µm / 200 mm

(rotary-type detector)

Y = 0.5 µm / 50 mm; 2 µm / 800 mm (standard)

Y = 0.7 µm / 50 mm; 3 µm / 800 mm

(long-type detector)

Y = 0.7 µm / 50 mm; 3 µm / 800 mm

(rotary-type detector)

Inclining range: -45° (CCW) to +10° (CW)

Range: 800 µm; 80 µm; 8 µm (bis zu 2,4 mm mit einem optionalen Taster)

Standard: EN ISO, VDA, JIS, ANSI and customize setting

Profiles: Primary Profile (P), Roughness Profile (R), Waviness (W), MOTIF (R, W) and more

Loading weight: 300 kg
