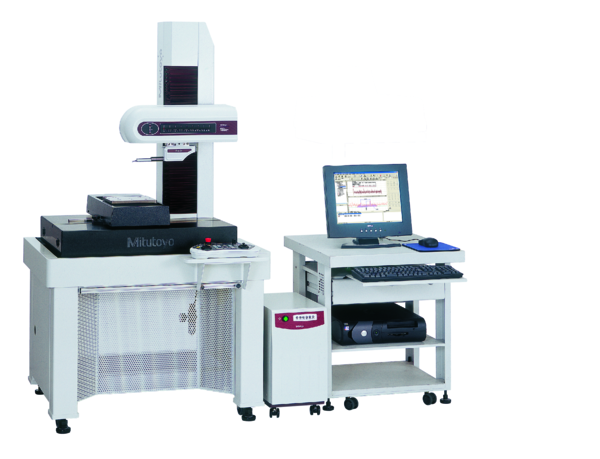

MITUTOYO SV-3000CNC CNC Surface Roughness Tester (X=200mm; Z2=300mm)

Base material: Granite

Resolution: 0.05 µm

Traverse: X = 200 mm; Y = 200 mm

Scale: Reflective-type linear encoder

Measuring speed: 0.02 - 2 mm/s

Drive speed: 200 mm/s (max. CNC); 0-60 mm/s (joystick)

Traverse straightness: 0.5 µm / 220 mm

Inclining range: -45° (CCW) to +10° (CW)

Range: 800 µm; 80 µm; 8 µm; (bis zu 2,4 mm mit optionalem Taster)

Dimensions (WxDxH): 800 x 651 x 1,000 mm; 800 x 651 x 1,200 mm *¹

Dimensions (WxDxH): 320 x 646 x 105 mm

Dimensions (WxDxH): 1,000 x 895 x 715 mm

Standard: EN ISO, VDA, JIS, ANSI and customize setting

Profiles: Primary Profile (P), Roughness Profile (R), Waviness (W), MOTIF (R, W) and more

Y-axis table unit: Installed
