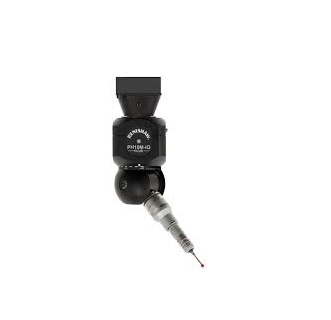

MITUTOYO PH10MQ Motorized Probe Head

Position change:

Horizontal direction: ±180º (at 7.5º increments, 48 positions)

Vertical direction: 0 to 105º (at 7.5º increments, 15 positions)

Mountable probe: MTP2000, TP7M, TP200, TP20, TP2-5W, QVP, SP25, SP600XE, MPP-10

Note that some combinations are prohibited on the same system.

Extension: PEM1, PEM2, PEM3, PAA1, PAA2, PAA3

More than one extension cannot be joined for use. However, combined use of PAA+PFCF1, PAA1+PFCF2, and PAA1+PFCF3 are permitted.

Use on an extension is not permitted for the WIZprobe/LC50/LC100/QVP.

Applicable models: CNC coordinate measuring machines

Configuration

PH10MQ head

Joint key S10

Allen key (nominal 1.5)

Allen key (nominal 2.5)

HCU-1

PHC10-2 (RS232C)
