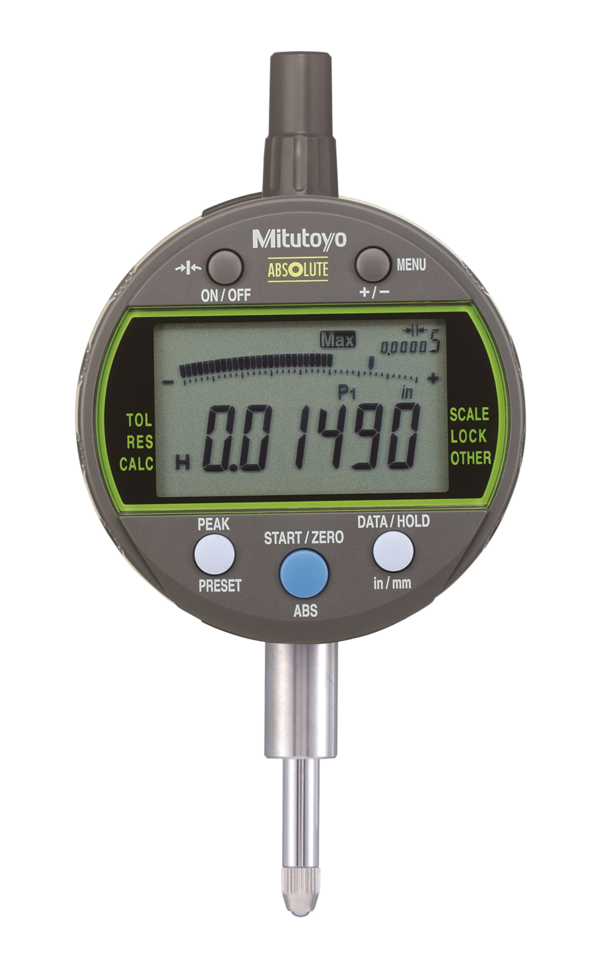

MITUTOYO 543-302B-10 Digital Indicator (0.5"/12.7 mm)

Digital/Analog: Digital

Inch-Metric:Inch/Metric

Range:0.5"/12.7 mm

Digital step:0.00005"/0.0001"/0.0005"/0.001 mm/0.01 mm

Max. Permissible Error E MPE (Total Range):±0.0001"/0.003 mm

H MPE (Hysteresis):0.0001"/0.002 mm

R MPE (Repeatability):0.0001"/0.002 mm

Measuring force MPL:≤1.5 N

Protection:IP42

Type:ASME/ANSI/AGD Standard

Mass:170 g

Display:LCD, character height 8 mm, 330° rotatable

Max. response speed:Unlimited

Measurement frequency (MAX/MIN/RANGE):

Standard mode: 10 times/s

fast mode: 50 times/s (plunger speed max. 50 µm/s for peak measurement)

Alarm: Low voltage, ABS composition error, overflow error, setting error

Stem ∅: 9.52 mm

Contact point: Carbide ball, thread: No.4-48UNF

Power supply: 1 battery CR2032

Battery life:

Standard mode: approx. 1 year

fast mode: approx. 4.5 month
