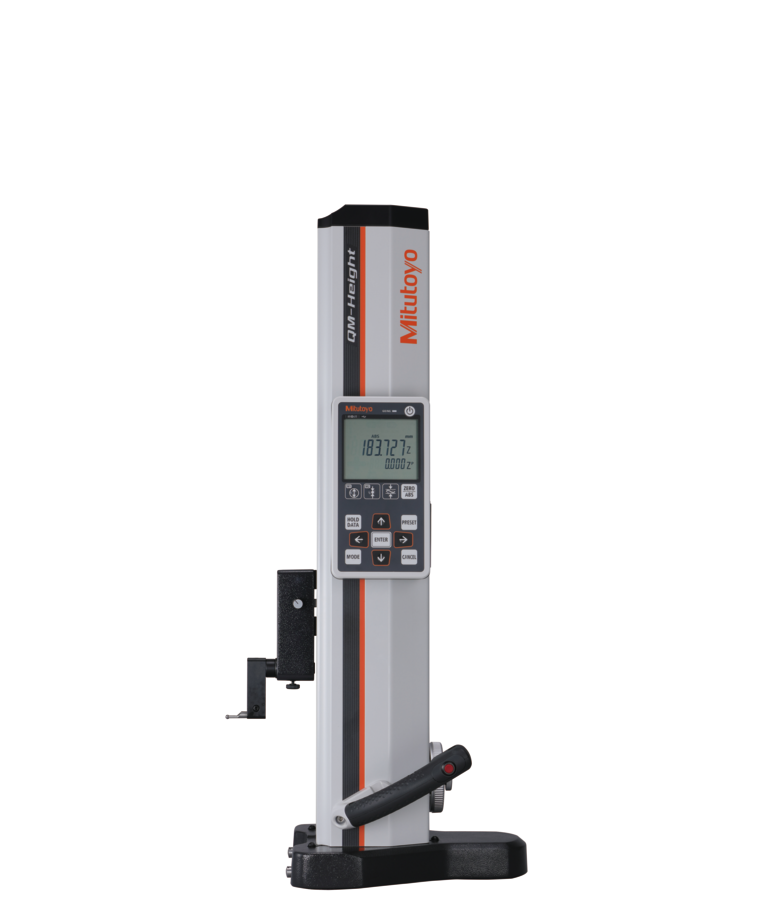

Measuring range (stroke): 0mm- 465mm (350mm/14")
Resolution: 0.001mm/ 0.005mm/0.00005"/0.0001"/0.0002"
Repeatability: 2σ ≤ 1.8µm
Perpendicularity (20°C): 7µm
Measuring force: 1.5 ± 0.5 N
Air-float: Available
Driving method: Manual
Guiding method: Roller bearing
Detection method: Electromagnetic induction Absolute encoder
Power supply: Alkaline battery size AA LR6 (4pcs), rechargeable battery size AA Ni-MH (4pcs.), AC-Adapter (optional)
Mass: 25kg
Dimensions (WxDxH): 280x273x784mm
Operating temperature range (recommended): 0°C to 40°C (10°C to 30°C)
Operating humidity range: 20 % to 80%RH (with no condensation)
Storage temperature range: -10°C to 50°C
Storage humidity range: 5% to 90% RH (with no condensation)
