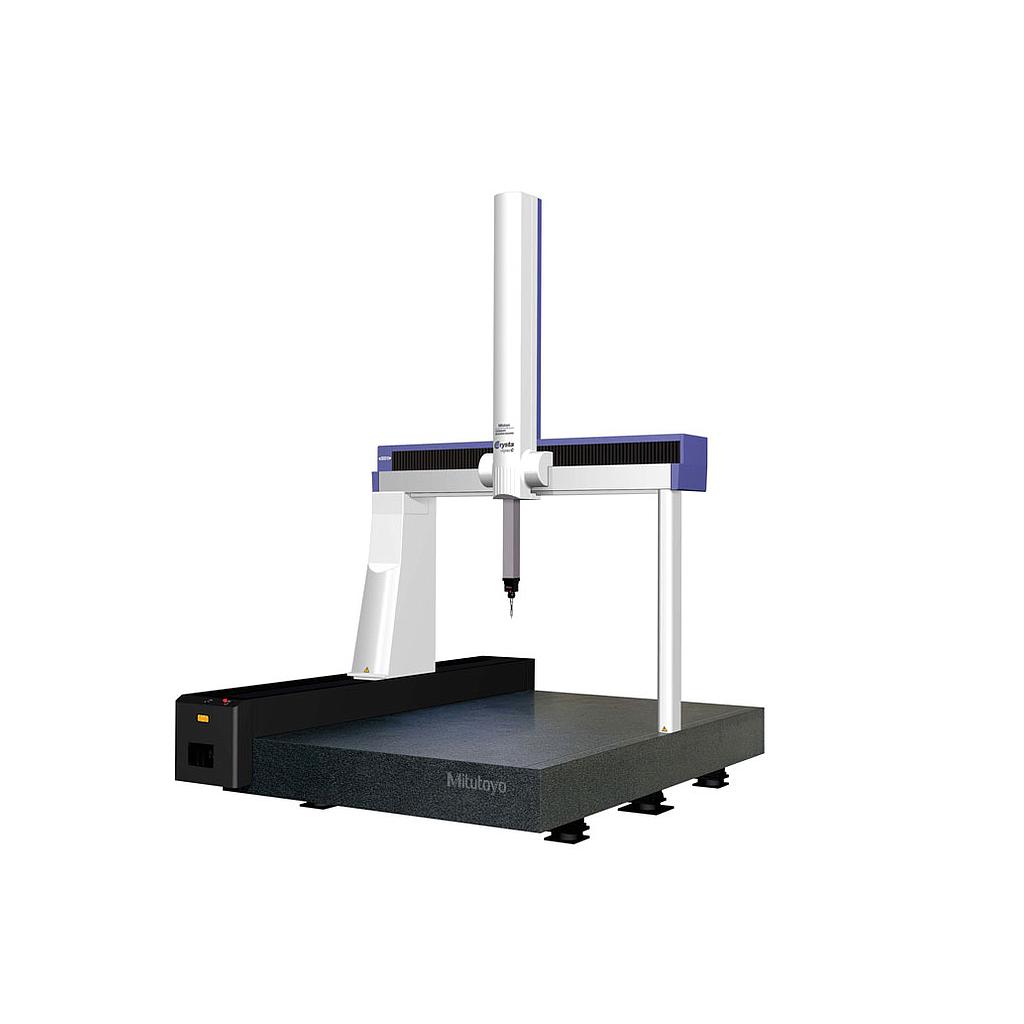

Type: Large Bridge Type Standard
X-axis: 62.9" (1600mm)
Y-axis: 157.4" (4000mm)
Z-axis: 47.2" (1200mm)
Resolution: 0.000004" (0.0001mm)
Material: Granite
Work Table Size: 70.86"x204.92" (1800mmx5205mm)
Tapped Insert: M8x1.25mm
Max Workpiece Height: 55.11" (1400mm)
Max Workpiece Weight: 9920lbs (4500kg)
Mass (including stand and controller): 32628lbs (14800kg)
Machine Dimensions WxDxH: 106.29"x220.47"x164.96" (2700mmx5600mmx4190mm)
Length standard: Linear encoder
Guide system: Air bearing
Max. Drive speed (3D): 20.43" (519mm)/second
Max. Acceleration: 0.17G
Air pressure: 0.4MPa
Air consumption: 150L/min
