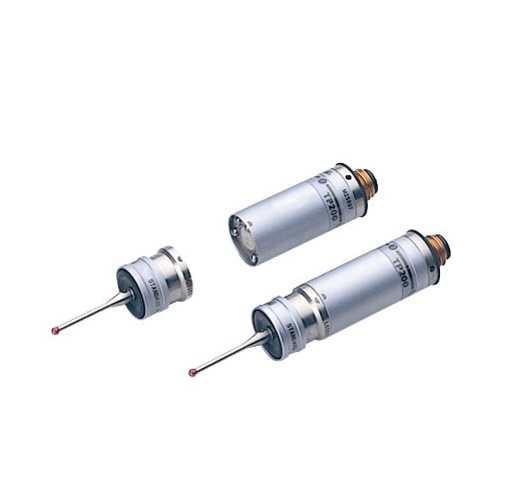

MITUTOYO TP200 High-Accuracy Touch Trigger Probe

Measuring direction: ±X, ±Y, +Z

Directionality (XY: 2D): ±0.4 m or less (with the STANDARD FORCE 10mm stylus), ±0.8 m or less (with the 50mm stylus)

Directionality (XYZ: 3D): ±0.65 m or less (with the STANDARD FORCE 10mm stylus), ±1 m or less (with the 50mm stylus)

Amount of over-travel:

- XY: XY±14º

- Z: +4.5mm (with 0.07N), +3mm (with 0.15N)

Maximum stylus length: 50mm (STANDARD FORCE); 30mm (LOW FORCE)

Stylus mounting method: M2 screw

Mass of a single probe unit: 22g

Durability: 10,000,000 times

Probe head: Essential: PH10M/PH10MQ/MIH/PH1

Applicable models: CNC coordinate measuring machines

Any stylus less than ø1mm should be used with the LOW FORCE module

Configuration

TP200 probe

Stylus module (standard)

Cleaning tool

Single-ended wrench

Double-ended wrench

Stylus tool

Datasheet
