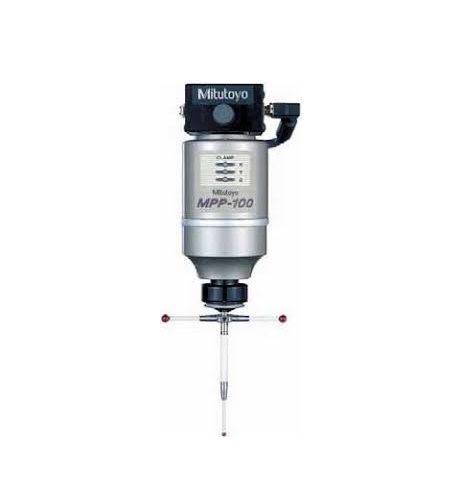

MITUTOYO MPP-100 High-Accuracy Scanning Probe SET

Measurement range: ±1mm

Resolution: 0.1 m

Max. permissible probing error during scanning: MPETHPʺ3.0 m (Crysta-Apex C series: if the ø4x18mm stylus is used.)

Spring rate: 0.75N/mm

Max. stylus length: 200mm for both vertical and horizontal

Max. stylus mass: 75g

Stylus mount: M4 screw

Max. scanning speed: 120mm/s

Air flow rate: 30NL/min

Probe head: N/A

Applicable models: CNC CMM (Crysta-Apex C series, Bright-STRATO series)

Automatic stylus change system (optional):

- 4 standard units [Port 1 is dedicated to the standard stylus (for calibration purposes)]

- Expandable to a maximum 10 ports. However, all styli should be arranged on the same axis.

Configuration

MPP-100 probe main unit

Damping oil

Connection air hose

Storage box

ø4X18mm stylus

Datasheet
