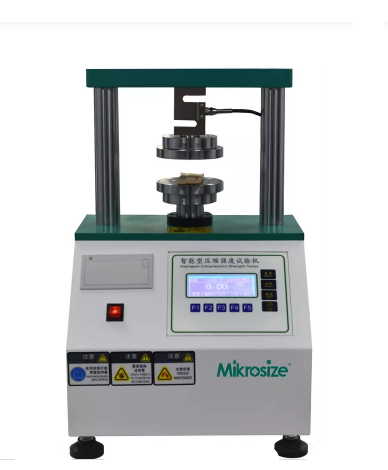

Mikrosize MS-30C Compressive Strength Tester (2000N)

Measuring range: ≤2000N

Precision: ±1%

Unit Conversion: N,Kn,kgf,gf,1bf

Testing speed: 12.5±2.5mm/min

Upper and Lower Platen Parallelism: ＜0.05mm

Platen size: 100×100mm

Distance between upper and lower platens: 80mm

Volume: 350×400×550mm

Power supply: 65kg

Edge Press Cutting Scissors

Sample size: 25×100mm（pattern of pressing on the edges）/25×80mm (bonding pattern）

Sampling deviation: ±0.05mm

Maximum sampling length: 220mm

Maximum sampling thickness: 18mm

Adjustable distance: 25，30，80，100，120mm

Depth of cut: ＜8mm

Weight: 36kg

Product Description

This equipment is the necessary special sampling apparatus for corrugated board edge compression strength test and adhesive strength test, which can quickly and accurately cut the standard test size, and is the ideal auxiliary test apparatus for corrugated board and carton production, scientific research and quality supervision and inspection departments.

This product can cut the specimen with precise parallelism, and there is an engraving on it, which can set the parallel spacing; Adopting imported sliding track, closely matched with Japanese imported blade, easily cut out multi-layer cardboard specimen;   Scale with laser engraving, scale clear, wear-resistant, easy to clean;  Adopting strong magnet, the blade is more convenient to install.
