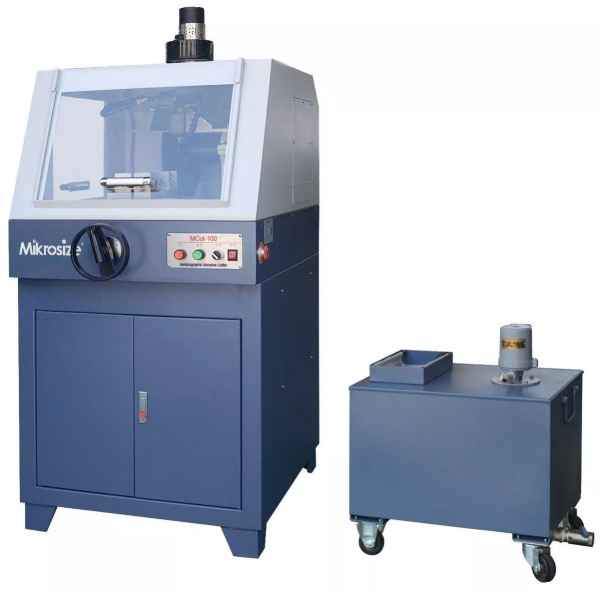

Mikrosize MCut-100 Manual Metallographic Cutter (2800rpm, 4kW)

Cutting Method: Manual, Y axis Stage Feeding

Cutting Disc: Φ380×2.8×Φ32mm

Max Cutting Capacity: 100×120mm

Y Axis Travel: 265mm

Spindle Speed: 2800r/min

Motor Power: 4kW

Cutting Stage: 250×240mm，T-slot 12mm

Clamping Device: Threaded Clamp，Jaw height 60mm,Opening 120mm

Power Supply: 380V, 50Hz，10A, Three-phase five-wire

Machine Dimensions: 800×900×1640mm

Net Weight: 340kg

Water Tank Capacity: 100L

Pump Flow: 25L/min

Water Tank Dimensions: 460×600×680mm

Water Tank Weight: 36kg

Packing List

Machine Mainframe: 1 set

Water Tank: 1 set

Cutting Disc: Φ380×2.8×Φ32mm,Resin cut-off wheel: 2 pcs

Cutting Fluid: 3kg: 1 bottle

Cleaning Water Gun: Handheld: 1 pc

Wrench: 36mm，46mm: each 1 pc

Inner Hexagon Spanner: 5mm，6mm: each 1 pc

Socket Spanner: 24mm: 1 pc

Water Inlet Pipe: Φ20mm: 1 pc

Water Outlet Pipe: Φ48mm: 1 pc

Fan Pipe: 1 pc

Fan: 1 pc

Usage Instruction Manual: 1 copy
