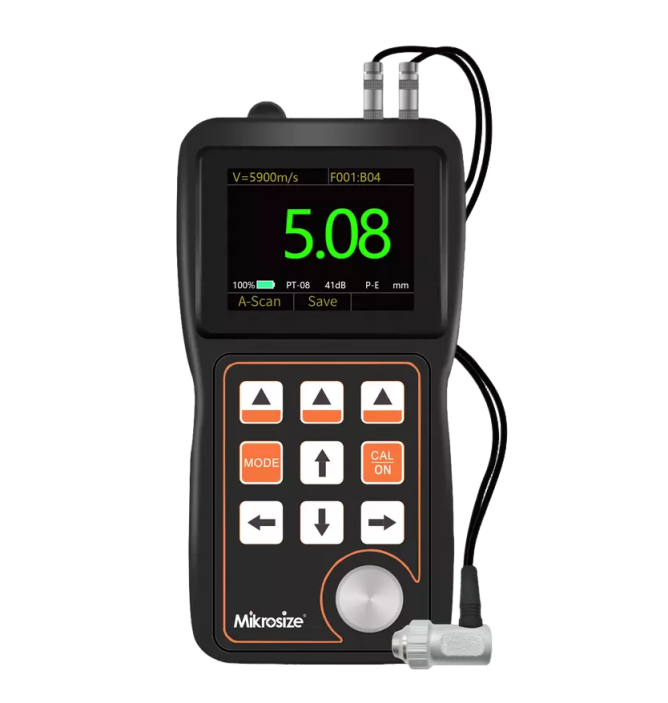

Display Screen: 2.4QVGA (320x240) IPS color screen, Contrast Ratio 10000:1
Working Principle: Ultrasonic Pulse/Echo/Echo Method by Using Dual Crystal Probe
Measuring Range: 0.6 to 508 Millimeters (0.025 to 20.00 Inches)
Measuring Resolution: 0.01mm or 0.1mm(0.001in or 0.01in)
Unit: mm/inch
Display Mode: Thickness Value Mode, Minimum/Maximum Value Capture Mode, Difference/Reduction Rate Mode
V Path Correction: Automatic V-sound Path Correction to Compensate for the Nonlinearity of the Dual Crystal Probe
Measuring Update Rate: 4Hz/s, 8H2/s, 16Hz/s Optional
Range of Material Sound Velocity: 500-9999m/s,0.0179-0.3937in/us
Working Language: Chinese/English/French（optional）
Alarm Set: Max/Min alarm, dynamically change thickness reading color when alarm
Power Supply: Two 1.5V AA Batteries
Standby Time
Low brightness for about 15 hours
High brightness for about 7 hours
Instrument Turn Off: Optional Automatic Shutdown after 5, 10, and 20 Minutes of Inactivity, or Manual Shutdown
Dimensions: 151mmx76mmx37mm(HxWxD)
Net Weight: 280g
Standard Delivery
Main Unit: 1 pc
Probe: TP0510400
Couplant: 1 pc
Alkaline Battery: 2 pcs
Screwdriver: 1 pc
Mini USB Cable: 1 pc
Instrument Case: 1 pc
Optional Delivery
Cast Iron Probe: TP0217508
Small Crystal Tube Probe: TP0508150
Small Crystal Tube Probe: TP0707100
Micro Probe: TP1006025
High Temperature Probe: HTP0315480
