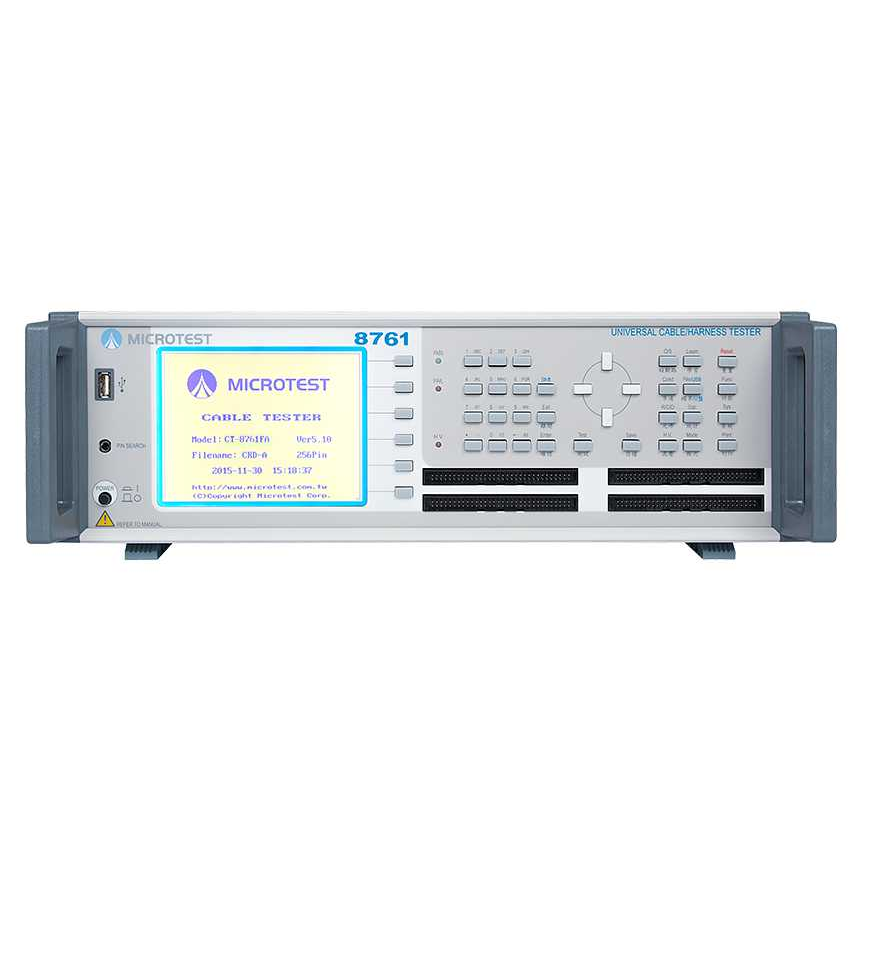

MICROTEST 8761FA 4-Wire Precision Cable/Harness Tester (1,5KVDC; 1KVA)

AC Hipot: 100-1000V

DC Hipot:50-1500V

AC Hipot Leakage Current:0.01mA ~5mA

DC Hipot Leakage Current:0.1µA ~ 1000µA

DC Hipot Insulation:1MΩ ~ 1.2GΩ

Hipot Output Accuracy:±5%

Hipot Measurement Accuracy: ±5%

Rated Output:0.01Ω ~ 20MΩ

Ponit of Test :64/128/256 Points

Hipot Measurement Time:0.01 Seconds - 60 Seconds

Test Scan Mode: Auto, Manual, External Trigger

Measurement Signal:Low Voltage Measurement Signal

DUT Requirement:Maximum Electric Capacity Allowance 3μF

Panel:System / Rapid / Edit / Function

Indicator:Pass/Fail HV LED red-green indicator lights/Screen Display/Sound

Power Supply: Fixed Voltage 115 / 230 Vac ±10%

Frequency 60 / 50 Hz

Display:320*240 dot-matrix display

Interface:Printer Port, RS-232, USB

Flash Memory:Store up to 500 Sets of Test Settings Files

Operation:Manual、 Auto、 Remote Control

EnvironmentTemperature :0℃ ~ 40℃ Humidity : RH≦75%

Dimension (W*H*D):8761(64) - 435x145x406 mm

8761(128) - 435x145x406 mm

8761(256) - 435x190x406 mm

Weight :8761(64) - 8.44 kg

8761(128) - 9.3 kg

8761(256) - 14 kg

Standard Accessories:Power Cord,Test Report,User Manual CD

Optional Accessories:Remote Control Cable,Calibration Kits(KB-8750K1),Current Expand Box(F874003)

4-wire turn to two-wire adapter board(F8750001),Multiple DUT Testing Expand Box(F874001)

Parameters Measurement Ranges
