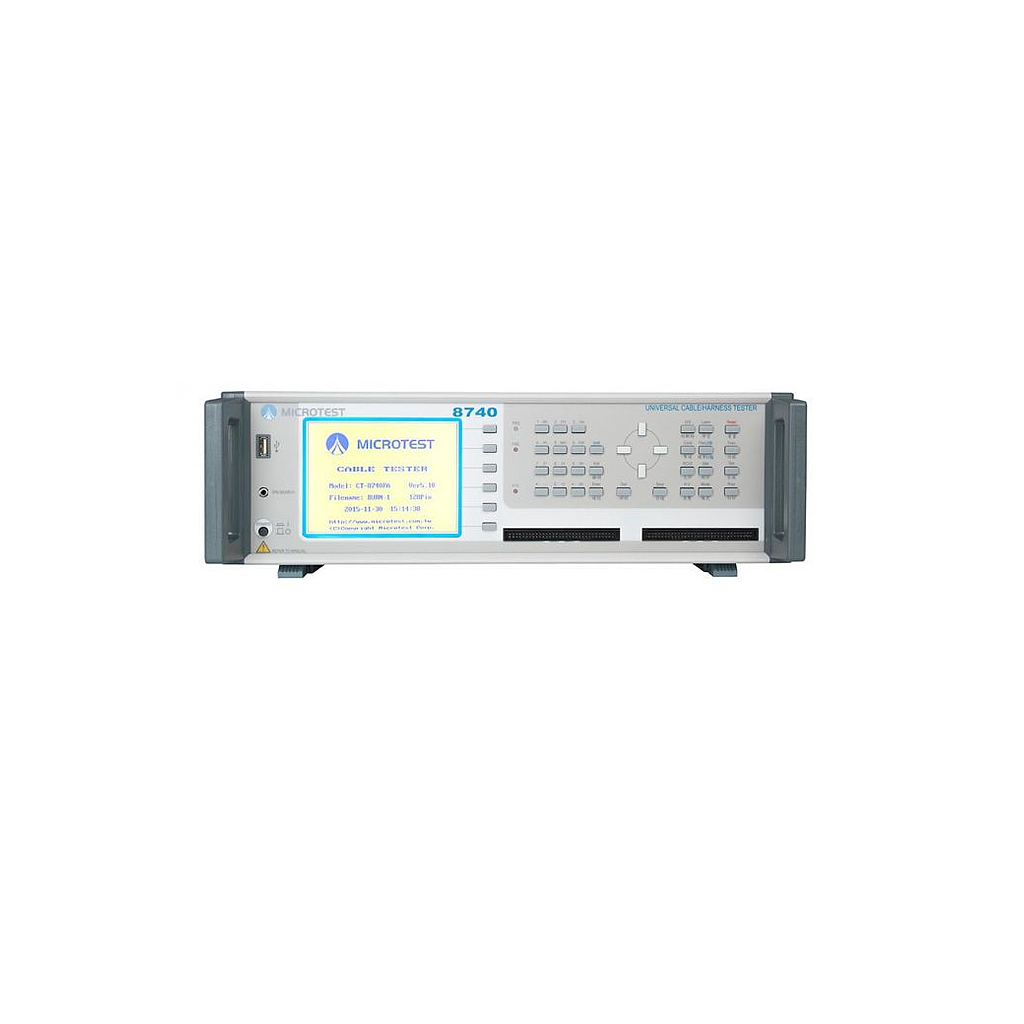

MICROTEST 8740N-128P 2-Wire Cable Tester

AC Hipot: -

DC Hipot: 50-1000V

AC Leakage Current: 0.01mA-5mA

DC Leakage Current: 0.1µA-1000µA

Insulation Test: 1MΩ-1GΩ

HV Output Accuracy: ±5%

Basic Accuracy: ±5%

Rated Output: 5Vdc

Resistance Test: 0.1Ω-2MΩ

Test Point: 128

Measuring Time: 0.01 Sec

Test Mode: Auto / Manual / External Trigger

Measuring Signal: Low Voltage Measurement Signal

DUT Requirement: Maximum Electric Capacity Allowance 1µF

Indicator: Pass / Fail / HV output LED red-green indicator lights / Screen Display / Sound

General:

Power Supply

Voltage: 115 / 230 Vac ±10%

Frequency: 60 / 50 Hz

Display: 320*240 dot-matrix display

Interface: Printer Port, RS-232, USB

Flash Memory: 500 sets

Operation: Manual, Auto, Remote Control

Environment:

Temperature: 15 ~ 35°C

Humidity: ≦ 75%RH

Dimension (W*H*D): 435x145x406 mm / 8.44 Kg

Measuring Range:

Open/Short: 2kΩ-100kΩ

Intermittence O/S: 2kΩ-100kΩ

O/S determinal Judge: with this feature

Conductance: 100mΩ-52Ω

Resistance: 0.1Ω-2MΩ

Capacitance: 10pF-1µF

Diod: 0-7V

IR: 1MΩ-1GΩ

Single-Side Test: with this feature

AC Leakage Current: 0.01mA-5mA

DC Leakage Current: 0.1µA-1000µA
