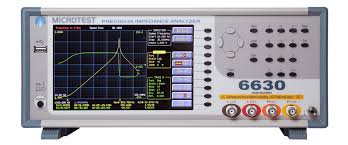

Test Frequency:10Hz ~ 20MHz
Minimum Resolution:100mHz, 6-bit Frequency Input
Accuracy:7 ppm±100mHz
Basic Accuracy ± 0.08%
AC Measurement:
Test Signal Voltage Level 10mV - 2Vrms
Voltage Minimum Resolution 1mV
Accuracy ALC ON：6％ * Voltage ± 2mV
ALC OFF：10％ * Voltage ± 2mV
Test Signal Current Level:200µA - 20mArms
Current Minimum Resolution 10µA
Accuracy:ALC ON：6％ * Current ± 20µA
ALC OFF：10％ * Current ± 20µA
Test Time (The fastest) < 3mS
Output Impedance: 25Ω/100Ω, switchable (Nominal value)
Parameters |Z|、|Y|、θ、X、R、G、B、L、D、Q、DCR、C、 Vdc-Idc、ESR、ε and μr
Measurement Mode:
Meter mode, Graphic scanning, Multi-steps mode
Calibration:Open Circuit/ Short Circuit/Load Calibration
Measurement Circuit:Series/Parallel
Multi-steps Mode:50 groups of Multi-steps setting (Each group contains up to 15 steps)
PC LINK / CPK:Option
Flash Memory:Built-in flash for setting 100 set documents
USB:LCR setting documents, BMP graphics, Test result data
Interface :I/O Interface Handler
Serial Interface USB、RS232
Parallel Interface GPIB
Display: 7.0”TFT, 800x480 Color Screen
Temperature: 10℃ ～ 40℃ Humidity: ≦80%
Power Supply: Voltage 90V ～ 264Vac
Frequency 47Hz ~ 63Hz
Power Consumption :Low power consumption: Maximum 30W (Nominal value)
Dimension (W*H*D): 336x147x340 mm
Weight: 3 kg
Standard Accessories:Test Fixture (FX-000C19)
Optional Accessories:
Test Fixture (FX-0000C6),Kelvin Clip Leads with BNC Box (F423906A)
BNC Test Leads (F663001A/B/C), Dielectric Material Test Fixture (FX-0000C7)
Liquid Dielectric Material Test Fixture(FX-000C20)
Magnetic Material Test Fixture (FX-0000C8) Test Fixture (FX-0000C9)
Bottom Electrode SMD Test Fixture (FX-000C10)
SMD Tweezers Test Leads (FX-000C11) SMD Test Fixture(FX-000C12)
