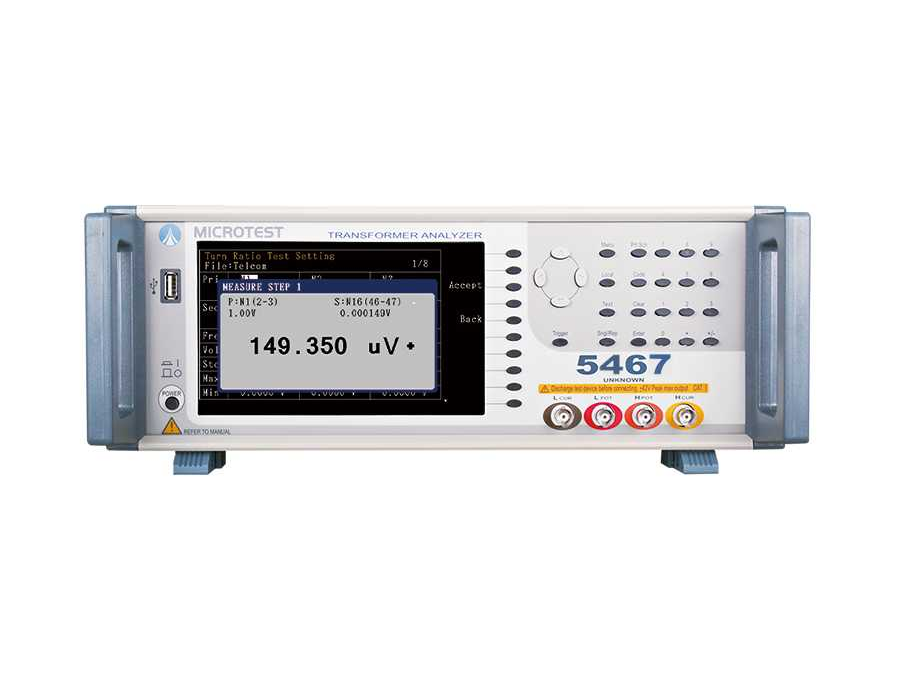

Test Channel: 48
Test Frequency: 10Hz-1MHz
Frequency Resolution: 5 digits
Basic Accuracy: ±0.1%
AC Drive Level: 10mV-2Vrms
DC Drive Level: 10mV-2V
Output Impedance: 100Ω
DC Bias Current: 100mA (F5620)
Turn: Inductance or Voltage; Test Freqeuncy：50Hz-200kHz
Test Mode: Meter Mode / List Mode
Parameters Measurement: Inductance (L), Impedance (Z), Capacitance (C), Resistance (R), Conductance (G), Susceptance (B), Admittance (Y), Alternating Current Resistance (ACR), Quality Factor (Q), θ, Direct Current Resistance (DCR), Leakage Inductance, Turn Ratio, Balance, Short Circuit
Parameters:
Parameters/ Rang/ Basic Accuracy (AC parameter:1kHz)/ Speed
L, LK/ 0.1nH ~ 9999.99H/ 0.1%/ 25ms
C/ 0.00001pF ~ 999.99mF/ 0.1%/ 25ms
Q,D/ 0.00001 ~ 99999/ 0.0005/ 25ms
Z,X,R/ 0.00001Ω ~ 99.9999MΩ/ 0.1%/ 25ms
Y/ 0.01nS ~ 99.9999S/ 0.1%/ 25ms
θ/ -180°~ +180°/ 0.03°/ 25ms
DCR/ 0.1mΩ ~ 99.999 MΩ/ 0.1%/ 25ms
Turn- ratio/ 0.1 ~ 99999.9 turns/ 0.5%/ 50ms
Pin-Short 12 pairs, between pin to pin /- /15ms
System:
ESR: Series / Parallel
Calibration: Open Circuit / Short Circuit
Built-in stroage: testing files 128 sets
Operation: Auto / Manual / Remote Trigger
Power Supply: Voltage：98Vac-132Vac or 195Vac-264Vac; Frequency：47-63Hz
Power consumption: 70VA
Environment: Temperature：10℃-40℃; Humidity：10-90%RH
Dimension (W*H*D): 344x145x343 mm (W*H*D)
Weight: 9 Kg
Interface : RS-232, Handler, LAN, USB Host, EXT. I/O
Display: 800*480 Color Screen, 7" TFT
