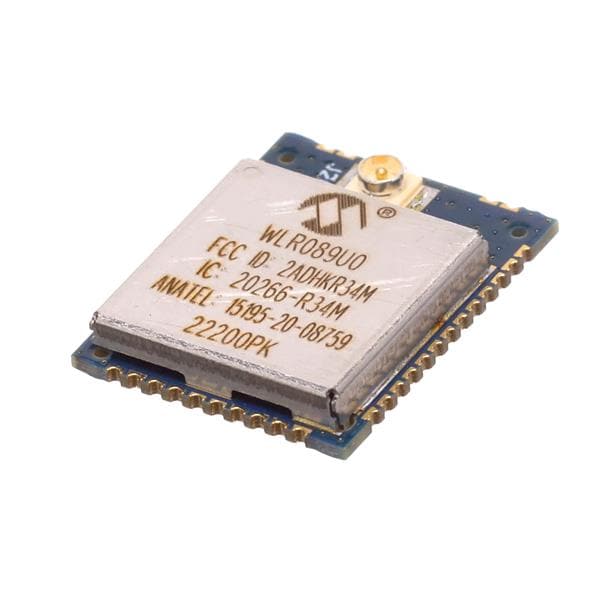

Microchip Technology WLR089U0-I/RM Sub-GHz Modules Ultra-low power Long range LoRa module (863-928 MHz)

Frequency: 863 MHz to 928 MHz

Dimensions: 17 mm x 13.5 mm x 2.8 mm

Output Power: 18.59 dBm

Interface Type: SPI, USB

Moisture Sensitive: Yes

Protocol - Sub GHz: LoRa/LoRaWAN

Supply Voltage - Max: 3.3 V

Supply Voltage - Min: 3.3 V

Antenna Connector Type: u.FL

Operating Supply Voltage: 3.3 V

Supply Current Receiving: 13.36 mA

Supply Current Transmitting: 114.68 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
