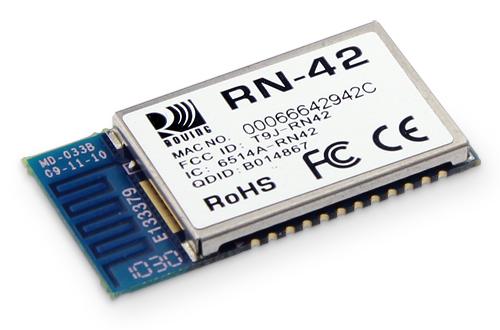

Microchip Technology RN42-I/RM Bluetooth Modules Class 2.1 Bluetooth Module w/ Antenna

Class: Class 2

Antenna: Integrated

Protocol: Bluetooth 2.1 + EDR

Data Rate: 3 Mb/s

Frequency: 2.4 GHz

Sensitivity: - 80 dBm

Unit Weight: 1.700 g

Output Power: 2 dBm

Interface Type: SPI, UART

Moisture Sensitive: Yes

Protocol - Sub GHz: ISM

Modulation Technique: FHSS, GFSK

Receiver Sensitivity: - 80 dBm

Supply Voltage - Max: 3.3 V

Supply Voltage - Min: 3.3 V

Antenna Connector Type: Integrated

Operating Supply Voltage: 3.3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
