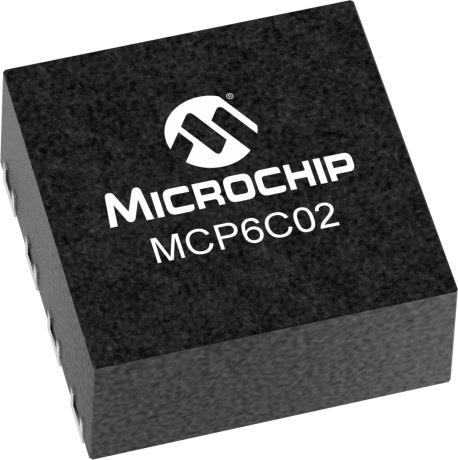

Microchip Technology MCP6C02T-050H/Q8B Current Sense Amplifiers Zero-Drift, Current Sense Amplifier

Gain Error: 0.1 %

Unit Weight: 20 mg

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2 V

Ib - Input Bias Current: 170 uA

Operating Supply Current: 490 uA

Vcm - Common Mode Voltage: 2.8 V to 68 V

Vos - Input Offset Voltage: 1.9 uV

GBP - Gain Bandwidth Product: 500 kHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

CMRR - Common Mode Rejection Ratio: 154 dB
