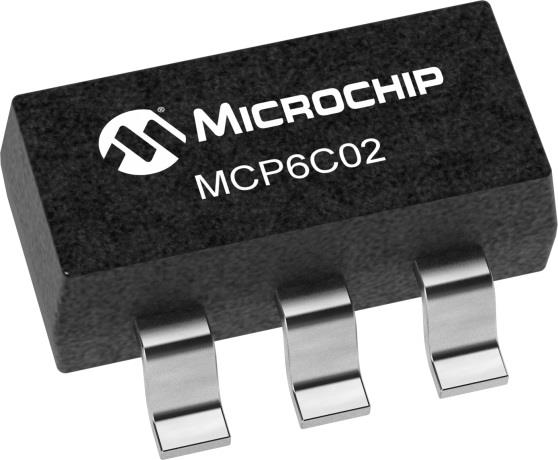

Microchip Technology MCP6C02T-050E/CHY Operational Amplifiers Zero-Drift, Current Sense Amplifier

Gain Error: 0.1 %

Input Type: Rail-to-Rail

Output Type: Rail-to-Rail

Unit Weight: 10 mg

Amplifier Type: General Purpose

Mounting Style: SMD/SMT

SR - Slew Rate: 0.6 V/us

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2 V

Ib - Input Bias Current: 170 uA

Operating Supply Current: 490 uA

Vcm - Common Mode Voltage: 2.8 V to 68 V

Ios - Input Offset Current: 1 pA

Output Current per Channel: 23 mA

Vos - Input Offset Voltage: 1.9 uV

GBP - Gain Bandwidth Product: 500 kHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

CMRR - Common Mode Rejection Ratio: 154 dB

PSRR - Power Supply Rejection Ratio: 86 dB
