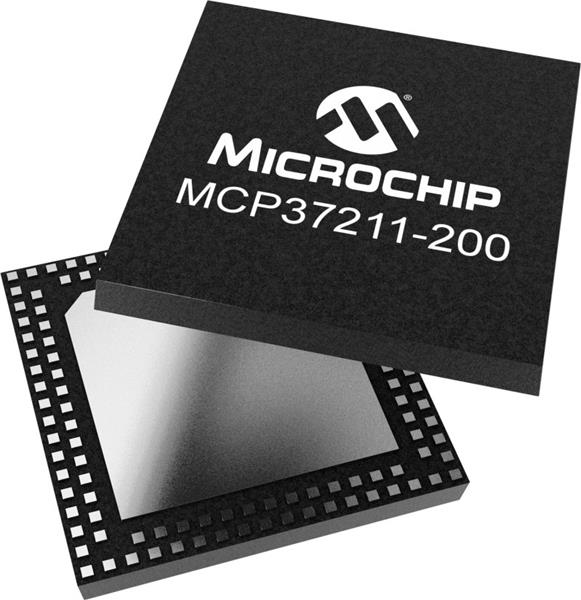

Microchip Technology MCP37211-200I/TE Analog to Digital Converters 12-bit, 200 Msps, single Pipelined ADC with 8-channel Mux

Shutdown: Shutdown

Resolution: 12 bit

Output Type: CMOS, LVDS

Architecture: Pipeline

Sampling Rate: 200 MS/s

Interface Type: SPI

Mounting Style: SMD/SMT

Number of Channels: 8 Channel

Number of Converters: 1 Converter

Analog Supply Voltage: 1.2 V, 1.8 V

Digital Supply Voltage: 1.2 V, 1.8 V

Pd - Power Dissipation: 468 mW

INL - Integral Nonlinearity: 0.125 LSB

SNR - Signal to Noise Ratio: 71.33 dB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: 0.03 LSB

ENOB - Effective Number of Bits: 11.56 bit

THD - Total Harmonic Distortion: 89 dBc

SFDR - Spurious Free Dynamic Range: 90 dBc
