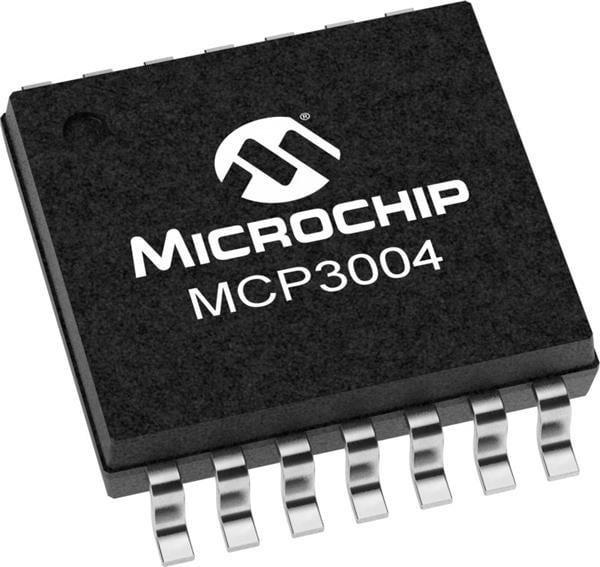

Microchip Technology MCP3004T-E/STV02 High Performance ADC Automotive grade 1, 10-bit SAR ADC, SPI, 4-channel

Input Type: Pseudo-Differential/Single-Ended

Resolution: 10 bit

Architecture: SAR

Sampling Rate: 200 kS/s

Interface Type: SPI

Mounting Style: SMD/SMT

Number of Channels: 4 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.7 V

Analog Supply Voltage: 2.7 V to 5.5 V

Digital Supply Voltage: 2.7 V to 5.5 V

INL - Integral Nonlinearity: 0.5 LSB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: 0.25 LSB

THD - Total Harmonic Distortion: - 76 dB

SFDR - Spurious Free Dynamic Range: 78 dB

SINAD - Signal to Noise and Distortion Ratio: 61 dB
